CT Importer for 3D Images

1. Open Denticon and pull up the patient. Go to the tooth with the square to bridge to Dentiray Capture.
2. Select Capture Images from the main Dentiray Capture screen.

3. Check the bridged patient information, then select Capture Images once again.

4. Under "Modality Compliant Image Capture Options", select CT Importer.

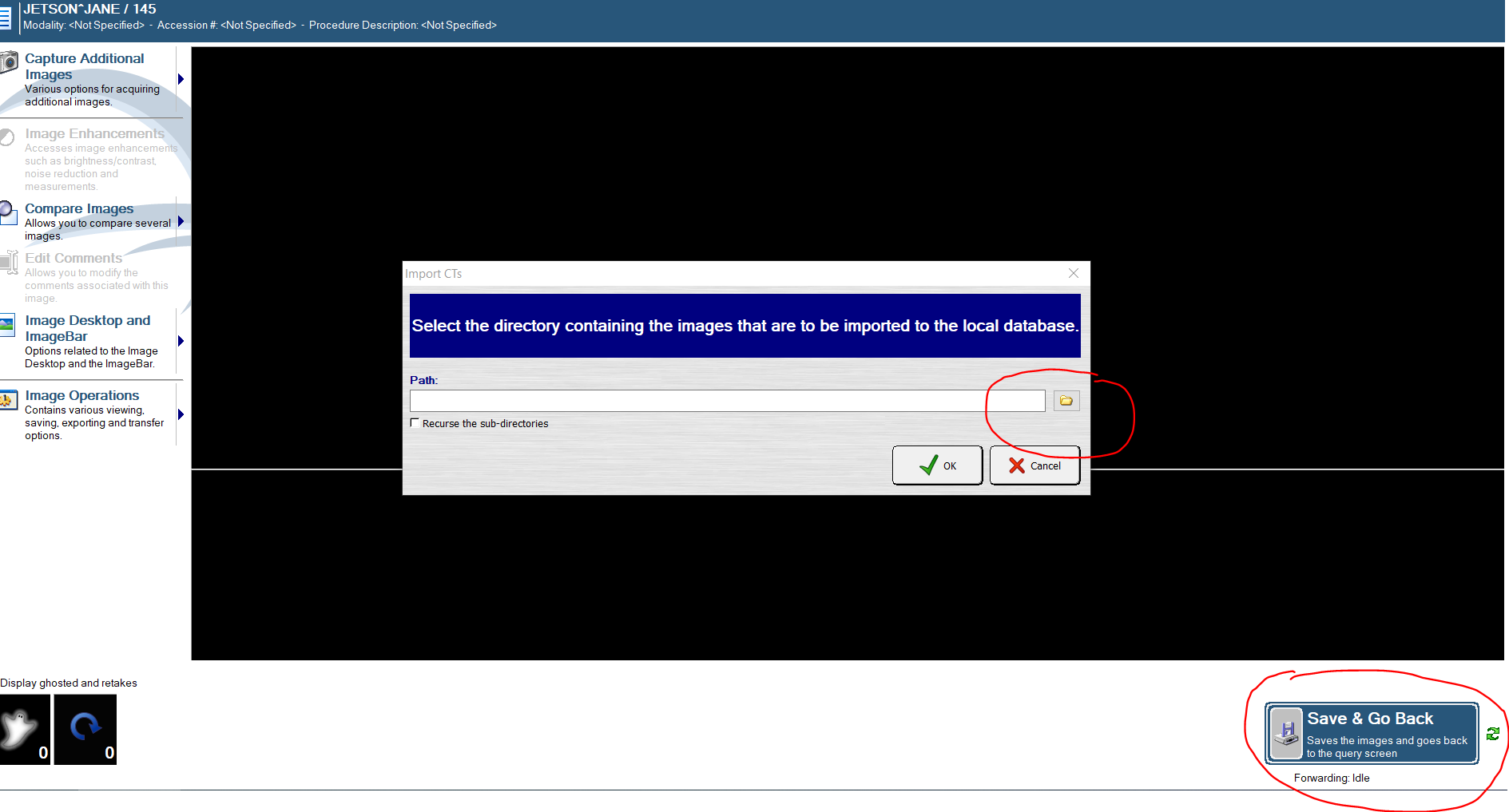

5. Enter the path containing the CT volume(s), custom field: (c:\users\vatech\desktop\3D) and select OK. The program will list the found volume(s) and give you a notice of how many CT volumes have been imported. Click the folder if you need to look for them.

6. It will take a minute or two to construct the volume. Don't close Dentiray Capture until the Forwarding is Idle. See the bottom right of the screen to see this. Click Save and Go Back.


At this time the image will be in Denticon's Image viewer, Apteryx (your cloud server).
