To download and install bridge:
Login to Denticon

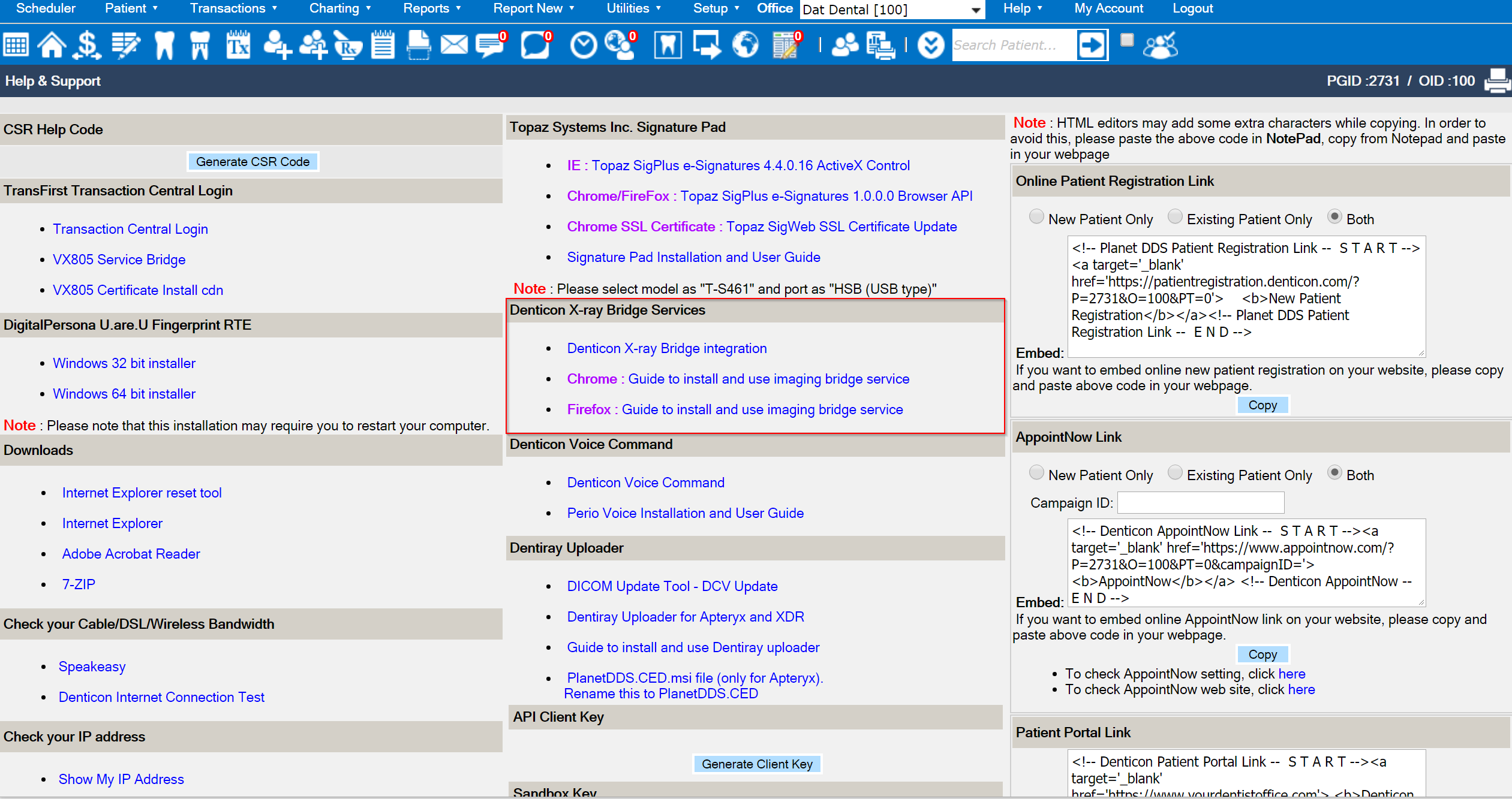

Go to Help tab
Select Downloads & Links
Click on Denticon X-ray Bridge integration and install
To setup the bridge:

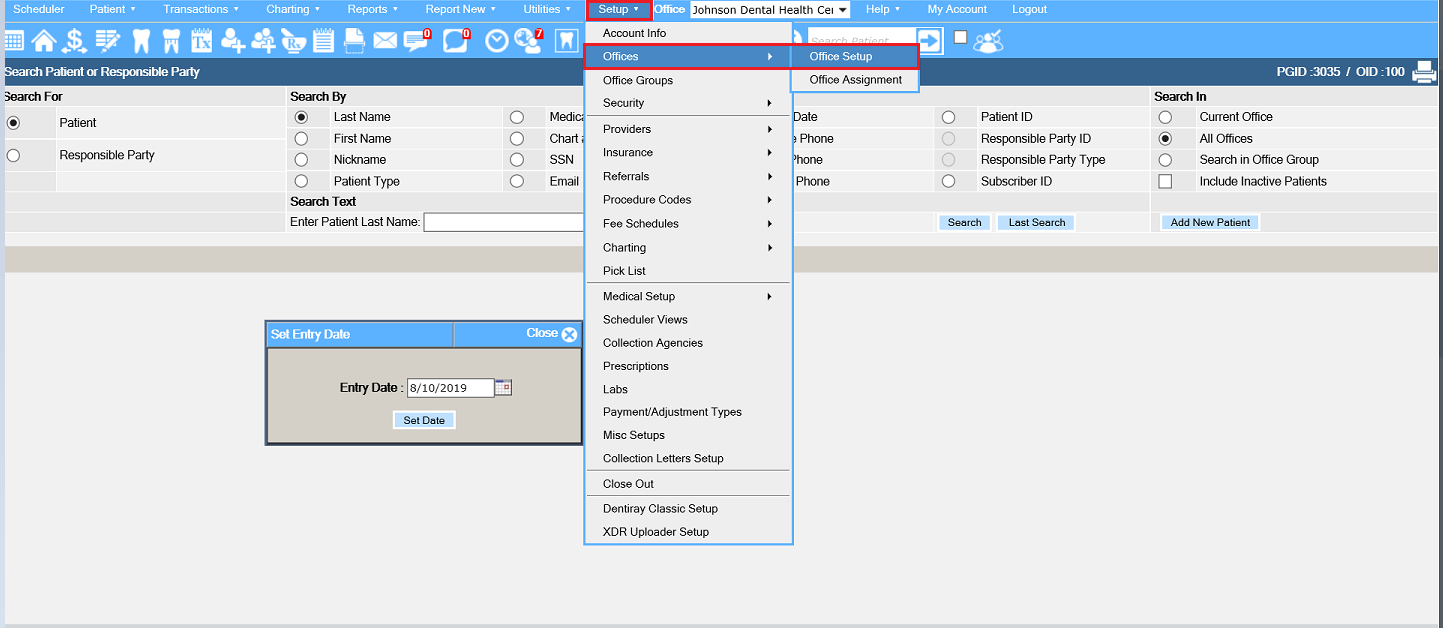

Click the word “Setup”, Offices and choose the “Office Setup” option from the drop-down box.
Choose the desired office location.

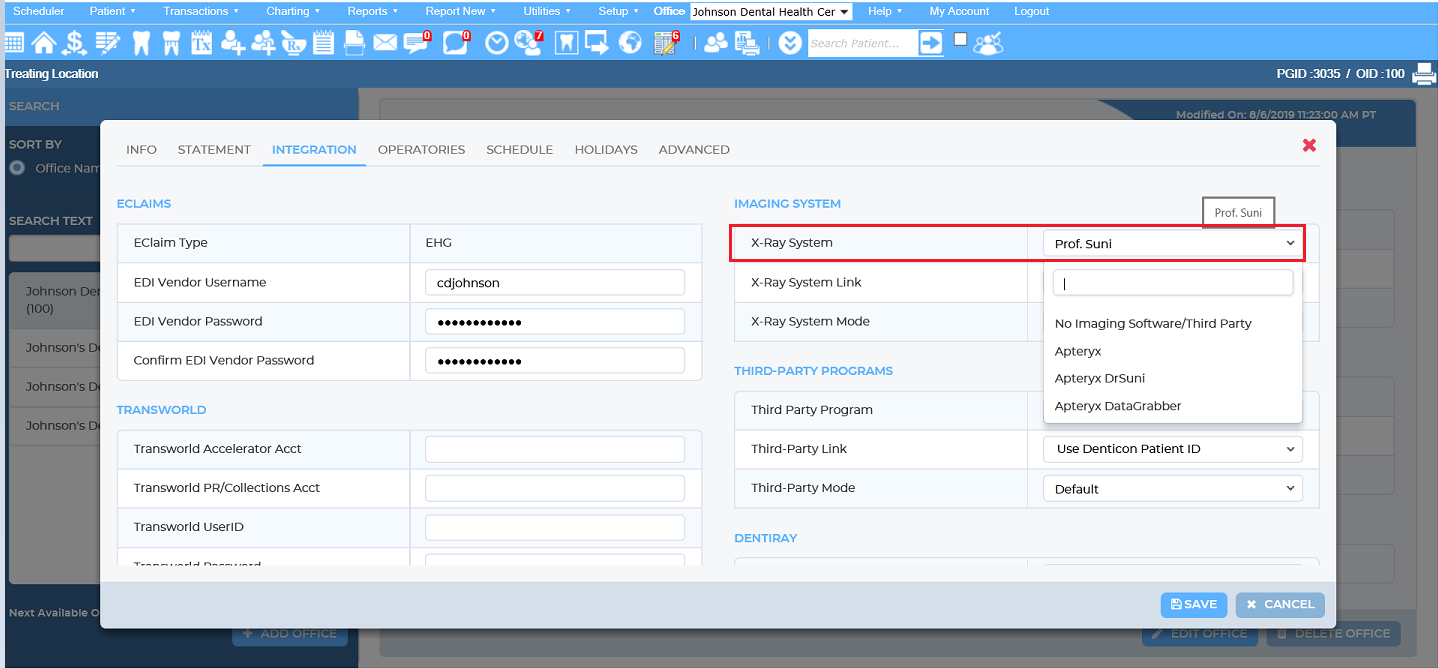

Choose the Integration tab. Click the Edit Office button.
At the ““X-ray System” field, indicate the web software name.

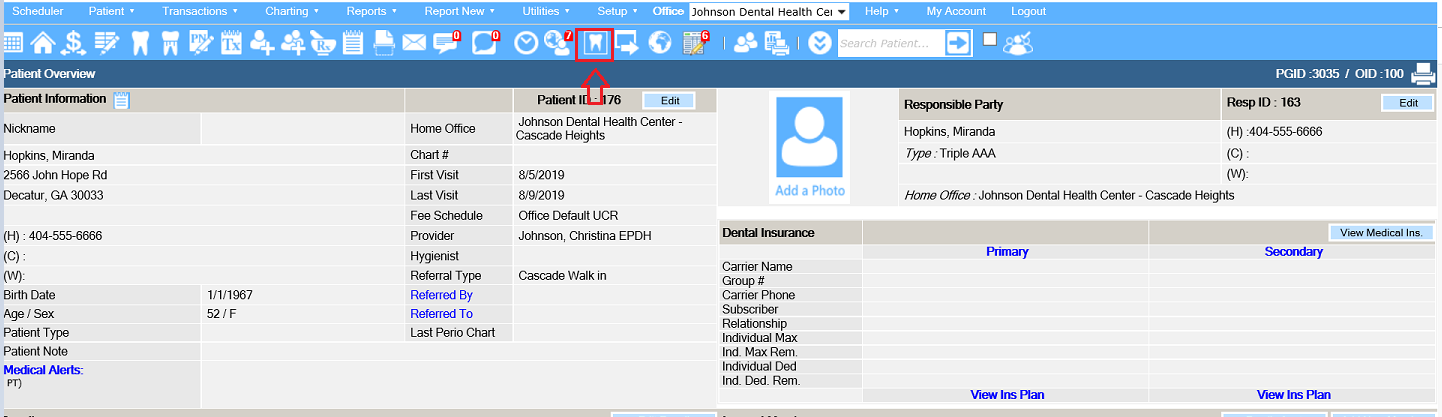

Once you have configured your x-ray system, there will be an additional tooth icon on your menu bar. Click on it and it may prompt for an ActiveX control install if utilizing Internet Explorer. Follow the install prompts and it will launch your x-ray system software.
* Apteryx and XDR are compatible with Dentiray Classic
NOTE: Denticon’s programming continues to enhance its features, and may add more imaging integration. Please consult your account’s office setup screen to review all currently available compatible imaging software.
Important note: Most bridges will require additional support from Planet DDS. Please contact Planet DDS to finalize bridging if you are not able to bridge to your imaging software.
Article Version 1.1 2026.21.04
