Carestream / Kodak Test Program
The Carestream test software can be found in the following location:
64-bit
C:\Program Files(x86)\Common Files\Trophy\Acquisition\AcquisitionSampleAdvanced.exe
32-bit
C:\Program Files\Common Files\Trophy\Acquisition\AcquisitionSampleAdvanced.exe
Default Location of Carestream Driver Files:
Acquisition SDK path (IXDLL misc. settings for Kodak Universal)
C:\Program Files(x86)\Common Files\Trophy\Acquisition - 64bit machine
C:\Program Files\Common Files\Trophy\Acquisition - 32bit
Input XML is not strictly UTF-8 encoded
This is caused by a special character in the patient’s information that is not within the UTF-8 encoding standards. Ensure all special characters in patients names are correct in the practice’s PMS software. You can correct this by having the practice fully re-enter the patient’s name (not copy/paste) in the PMS.
The panos that are returned when the UAC prompt appears may also return as white images. This is a good indication the execution method would need to be changed.
Images Disappear When Toggling On Kodak RTF
Cause: Kodak redistributable missing from computer
Solution: Download, uncompress, and deliver KodakSDK folder to install folder
Compiled Volume Directory Not Found
CS9600, CS8200, and CS8100 Evo all suffer from inconsistent behavior and CT typically fails to return. Further work is needed by Engineering to repair these integrations. We recommend offices follow these steps https://apteryximaging.zendesk.com/hc/en-us/articles/4407896506267-Export-CBCTs-as-DICOM-Format-in-Common-3rd-Party-Software to export the image and then use CT Importer within XVCapture to ingest the volume as a single file multi-frame CT or directly upload the CT to Apteryx if the patient metadata in the CT volume matches the intended patient metadata provided to Apteryx by the office’s PM software.
Acquisition DLL not found error
-
Verify the extension settings is reflecting the proper path of the acquisition drivers, and that the drivers are installed. The default path in the extension options is for 64 bit computers.
Navigate to imaging extensions.
Choose Carestream extension
Click the miscellaneous tab
-
Scroll down and verify path is correct. Default paths below.
C:\Program Files(x86)\Common Files\Trophy\Acquisition - for 64 bit
C:\Program Files\Common Files\Trophy\Acquisition - 32bit
Check to see if the sensor will ready in the Carestream test program located in C:\Program Files(x86)\Common Files\Trophy\Acquisition\AcquisitionSampleAdvanced.exe
Try running as administrator and verify all permissions are set correctly
Nothing could be done error
If the sensor is readied and prompts "nothing could be done"
Verify Carestream Imaging/any other acq software is not open-try again
Restart PC
Command Line to check sensor using acquisition drivers
C:\Program Files (x86)\Common Files\Trophy\Acquistion> acquisition –querydevices io
Acquisition –querylines *device id* (acqio.dll)
Acquisition –acquire *device id* *line ID* *Output path*
Images Saving as thumbnails in different studies in DCV
Turn the "Strip Icon Sequences from Images" option on.
Pans/Cephs appear with B&W bars or Very Light
Cause: processings2D.dll and DICOMConvertFP.EXE missing from install folder
Solution: Download and run newest extension upgrader from https://apteryximaging.zendesk.com/hc/en-us/articles/4412758829595-Current-Imaging-Downloads
If the above files exist but images are still very light, go to advanced user tools > preferences > imaging extensions > kodak > misc settings and change "when running external utilities, execute them as..." to "as a simple process (execute).”
Dark/blurry panoramic images
-
Verify processings2D.dll and DICOMConvertFP.EXE are in install folder
If not, download and run newest extension upgrader from https://apteryximaging.zendesk.com/hc/en-us/articles/4412758829595-Current-Imaging-Downloads
-
Try adding adaptive normalize at 1%, 2%, and sharpening at 15x15 factor of 20 to PCFs.
If contrast is too high, adjust normalize filter to %1, %1 or %2, %2.
If the install uses RVG sensors, or other Carestream devices, ensure the affected modalities is set to PX
IO Camera returning Black Images in DCV
Make sure that all of the necessary Lead Tools files are in the Apteryx install directory.
XML Response Cannot Be Interpreted
Verify pano modality is enabled under hardware options for the extension
Check the directory for any acquisition.dll files. Cut them out of the Apteryx program install folder if you find them and try again.
Ensure no other software is open that could be holding onto the drivers like CS Imaging
Sensor shows as "loader" in Device Manager
Follow ONLY step 2 in Acquisition DLL not found error. Readying in acqusampleadv should resolve it. If not, refer to CS.
Placing the Sensor in Diag Mode (automatically return a test image)
Create the following Regkey in Computer\HKEY_CLASSES_ROOT\trophy\RVG:
DiagMode
Set the data equal to 1 to enable

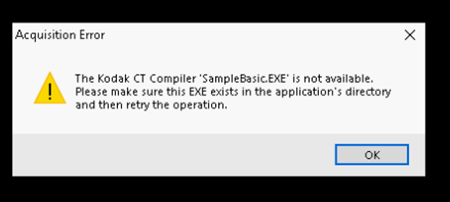

SampleBasic error
Run the newest CS upgrader from https://apteryximaging.zendesk.com/hc/en-us/articles/4412758829595-Current-Imaging-Downloads

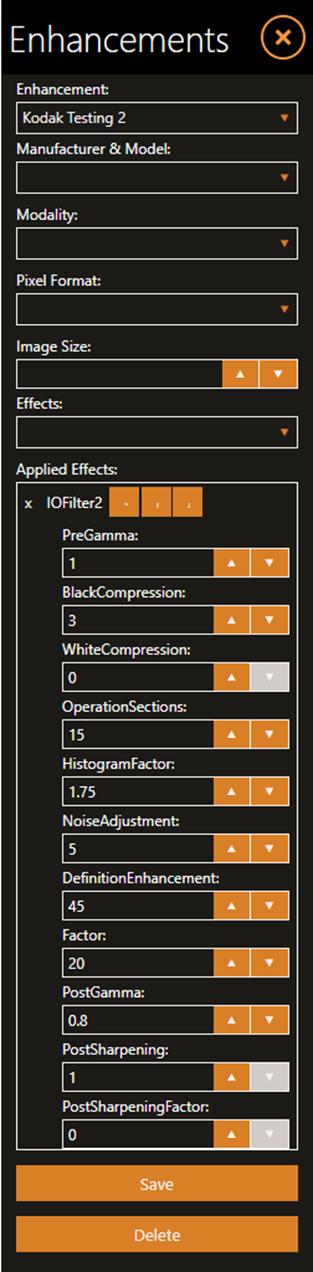

Real Time Filters
Success found with the following settings
UAC Prompt Prevents Image Processing
For offices that are locked down and have UAC prompts that prevent DicomConvertToFp.exe (for 2D images), or SampleBasic.exe (CTs) from running after capture, try adjusting the execution method to ‘Simple Process’ within the Kodak extension’s miscellaneous settings.
