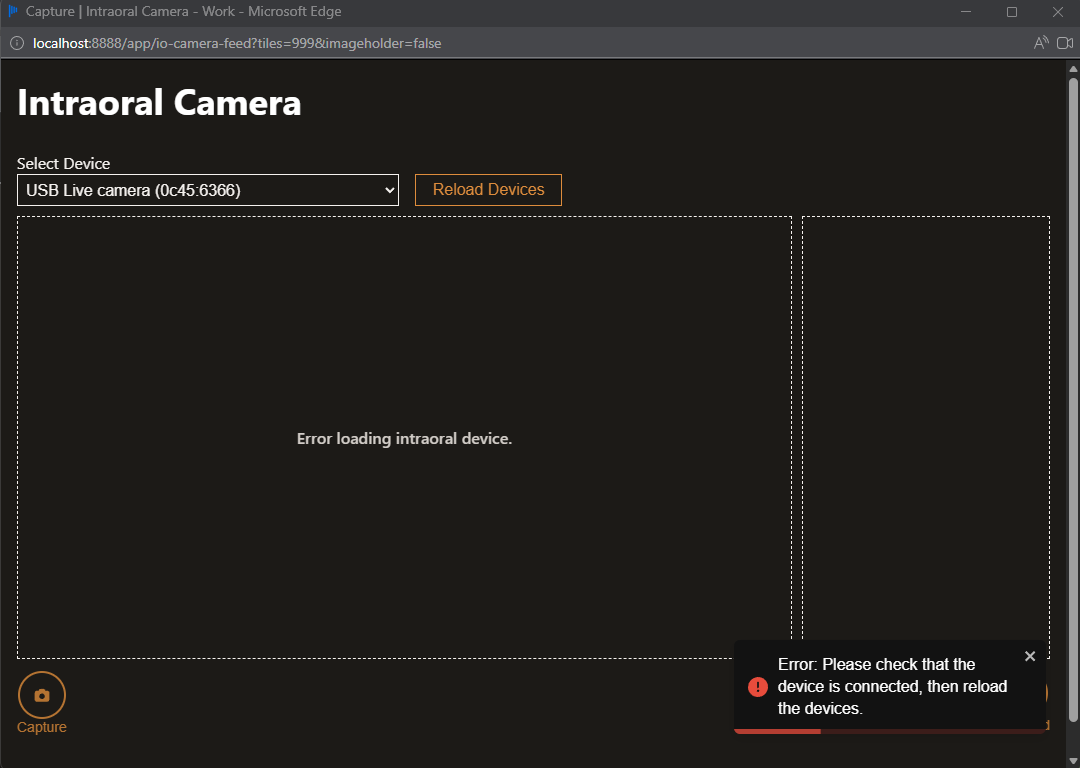

When capturing within XVWeb Capture, Windows may refuse XVWeb Capture access to the camera, resulting in the error message "Error: Please check that the device is connected".
Process Description:
This article reviews how to ensure Windows is granting access to the camera in the camera privacy settings and how to ensure the camera is initialized by Windows in a compatible format for XVWeb Capture.
How to Grant XVWeb Capture Access to the Camera in Windows Camera Privacy

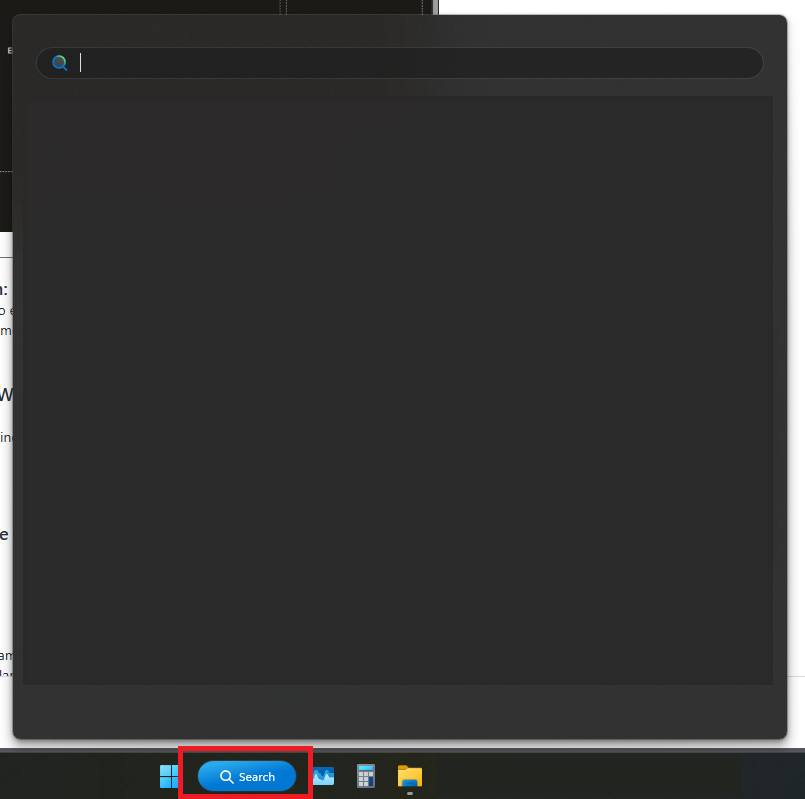

- Navigate to the Windows Search Bar on the Task Bar
- Search "Camera privacy settings"

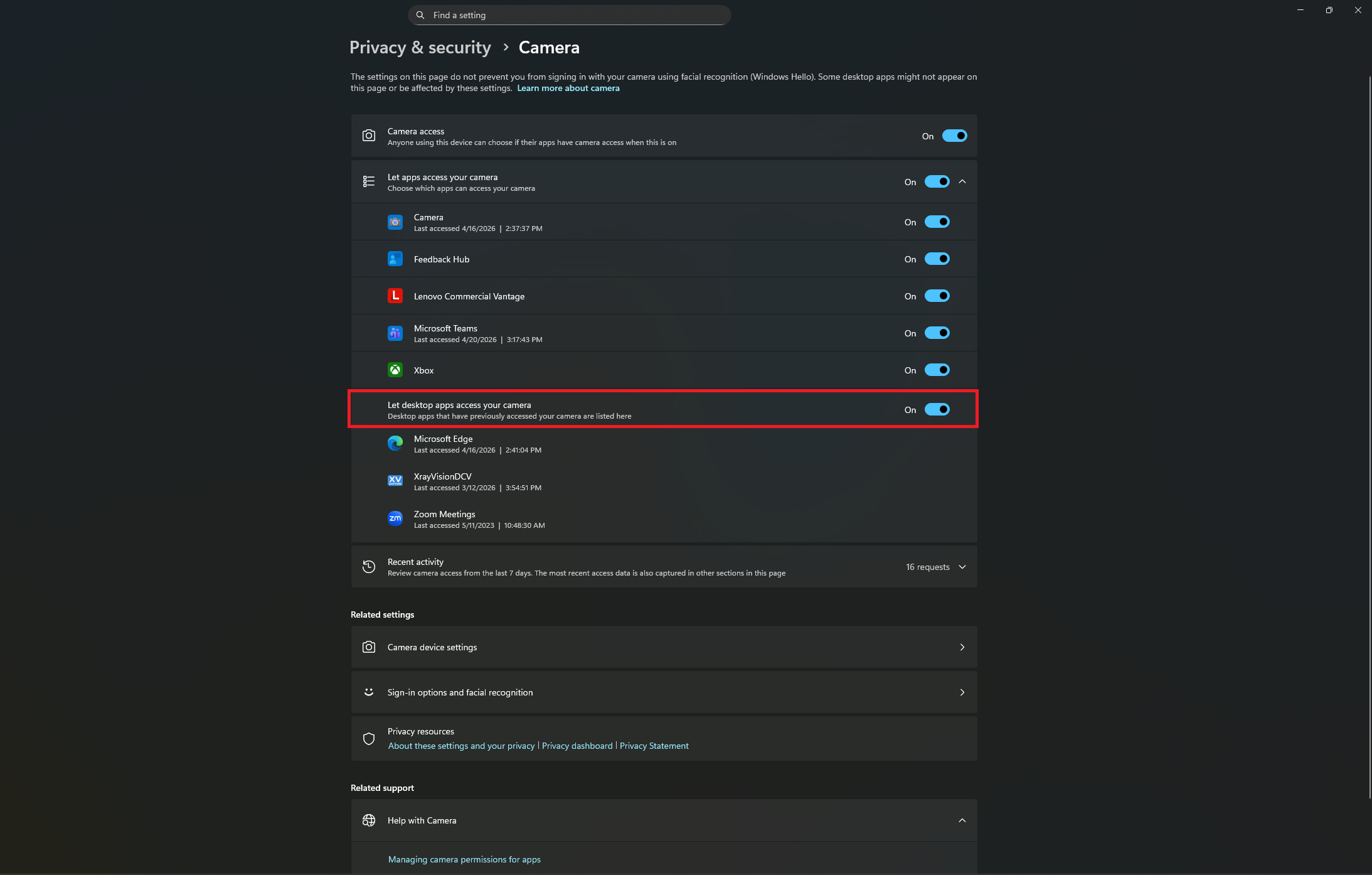

- Ensure "Let desktop apps access your camera" is enabled
How to Ensure "Turn on Basic Camera" is Disabled within the Camera's Advanced Settings
- Navigate to the Windows Search Bar on the Task Bar
- Search "Settings"

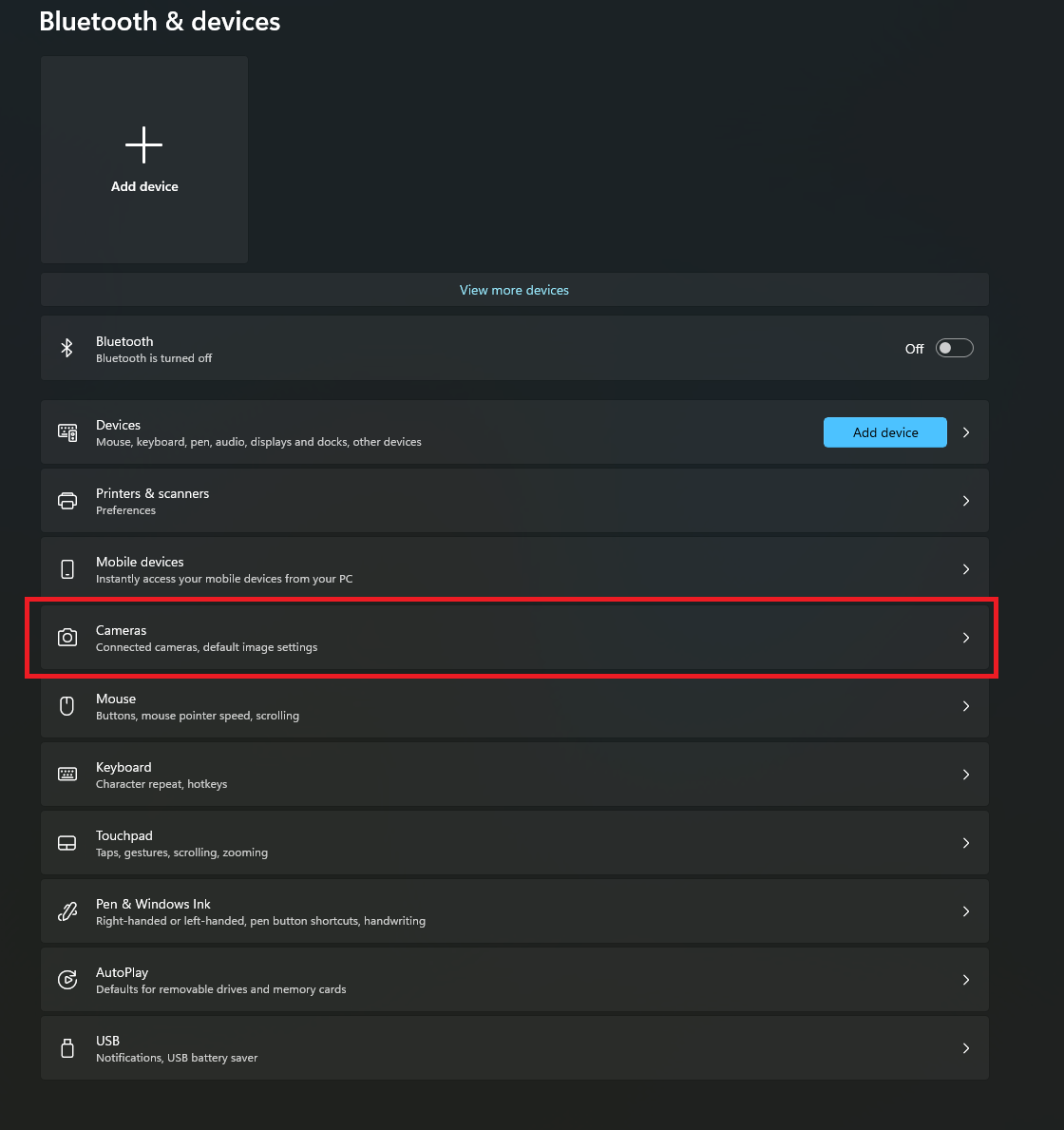

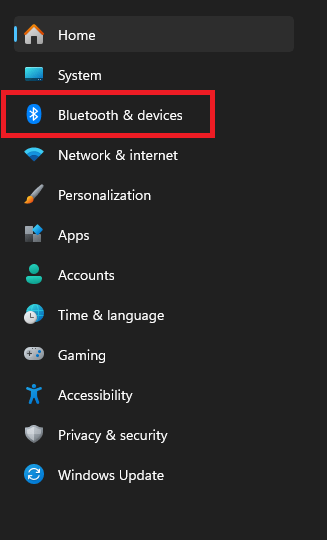

Navigate to "Bluetooth & Devices"

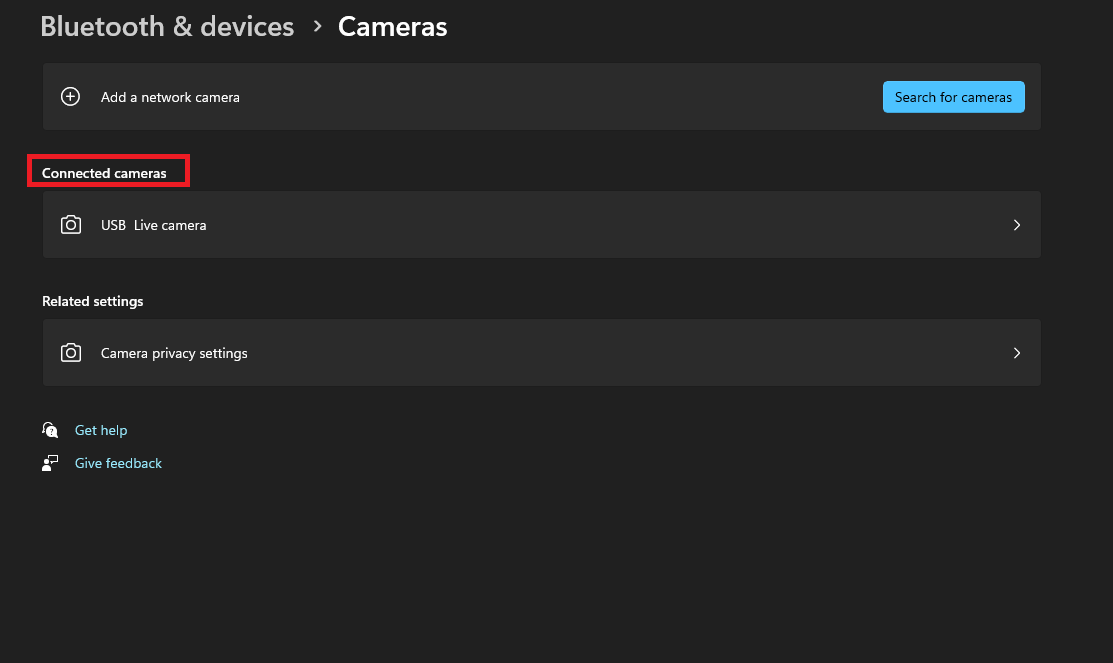

Navigate to "Cameras"
- Select the Intraoral Camera within the list of "Connected Cameras"

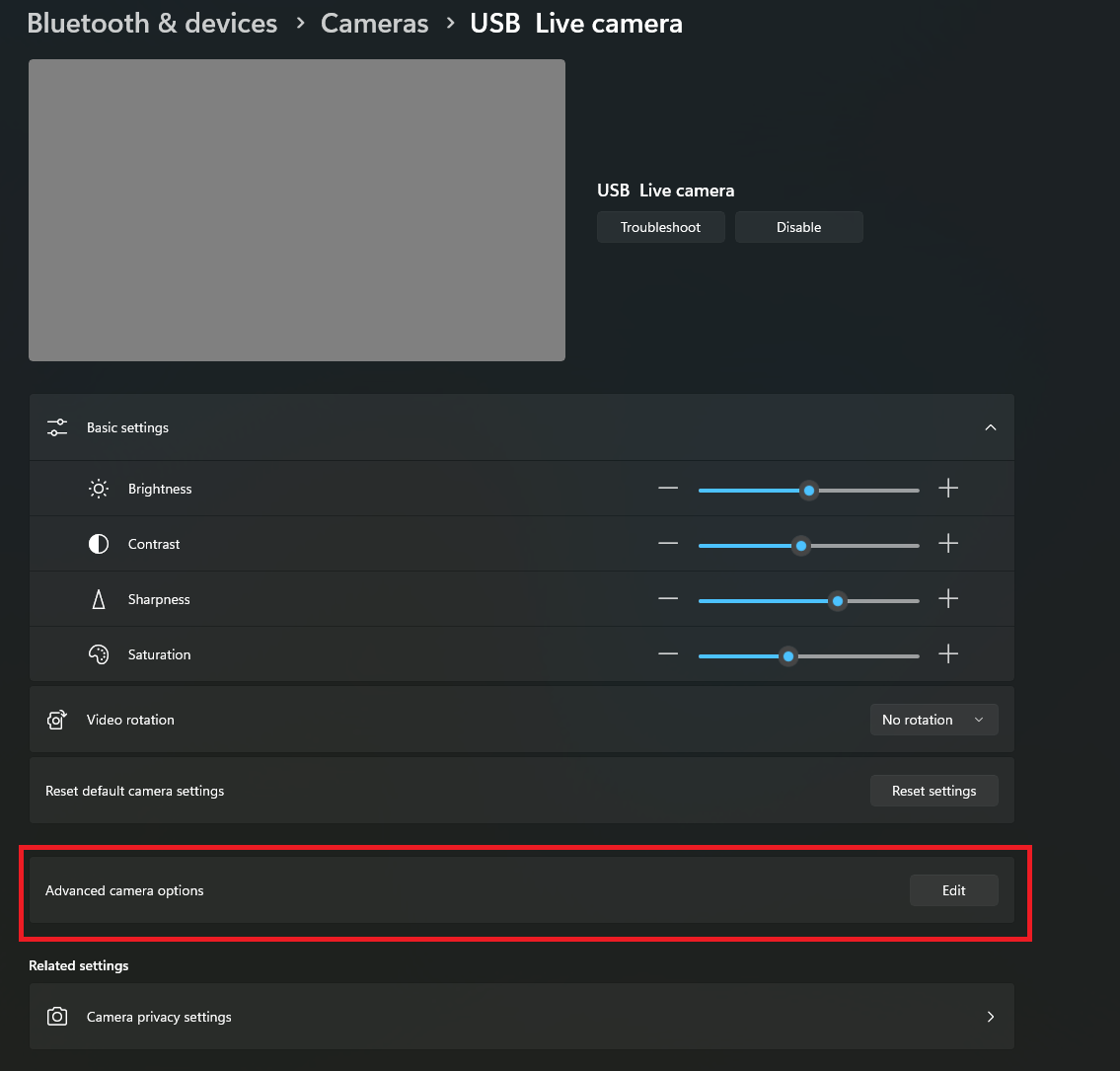

- Edit the "Advanced camera options"

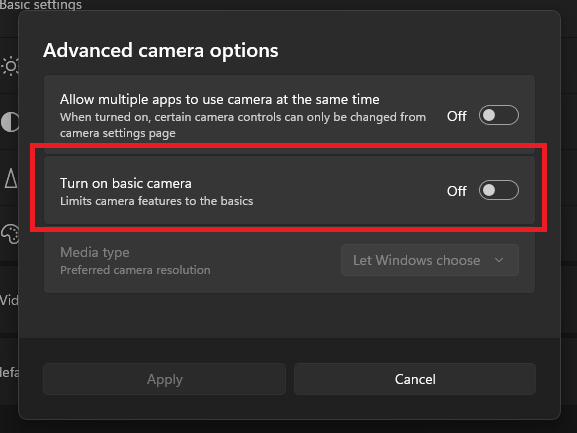

Ensure "Turn on basic camera" is disabled
Next Steps:
If difficulties using your camera in XVWeb Capture persist after attempting to above recommendations, we highly recommend contacting PlanetDDS Support or continuing to work with PlanetDDS Support, if a ticket has already been submitted. We are happy to assist as needed.
Article Version 1.0 4/22/2026
