Schick Recommended Image Quality

Josh Grabia

Below are the recommended settings for image quality using Schick sensors. The settings themselves are the same between differing Apteryx software, however the method of accessing those settings varies slightly between the XrayVision and the DCV/XVCapture lines.

NOTE: If the office will be using the legacy Schick Sensors (CDR Phoenix or Pluswire) Apteryx recommends installing the Schick 33 / Elite driver along with either the CDR 2000 or CDR USB Remote HS driver.

DCV/XVCapture:

  1. Launch DCV/XVCapture and select Advanced User Tools
  2. Select Preferences
  3. By default, the User ID is admin and the Password is AKRON

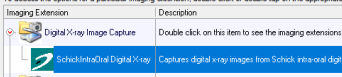

  4. Select Imaging Extensions from the left side towards the bottom, click the red caret (>) next to Digital X-ray Image Capture and select SchickIntraOral Digital X-ray

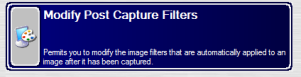

  5. Click on Modify Post Capture Filters

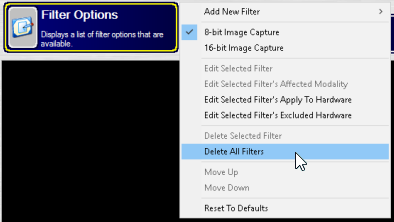

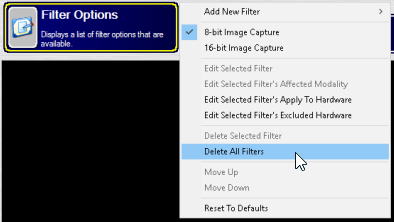

  6. Select Filter Options > Delete All Filters and hit Yes on the prompt

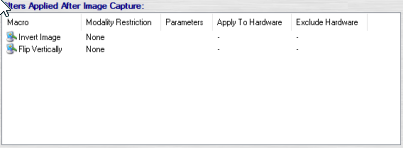

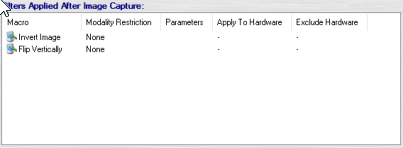

  7. Select Filter Options > Invert Filter and Filter Options > Flip Vertically Filter
  8. Click OK in the upper right to close the Post Capture Filter screen, then select Hardware Settings on the left
  9. Select Display Schick Hardware Settings

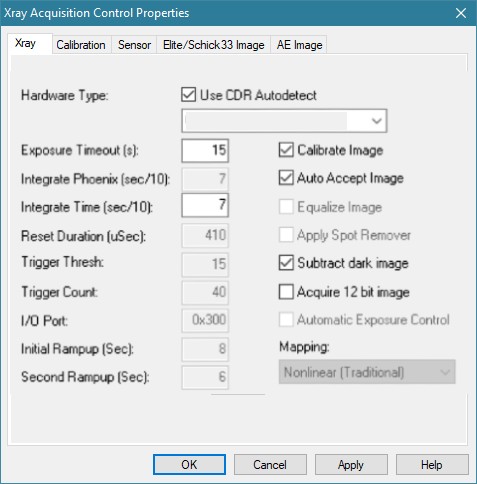

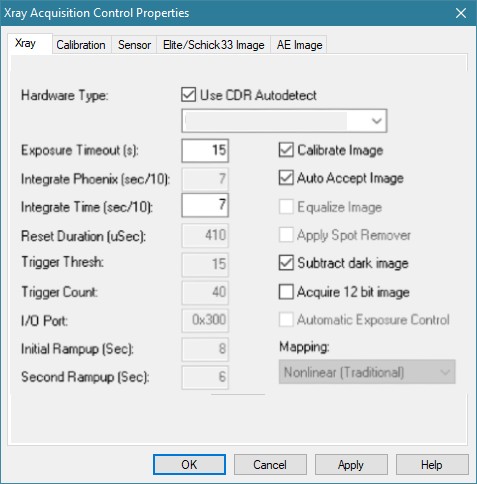

  10. Verify the below settings on the Xray tab

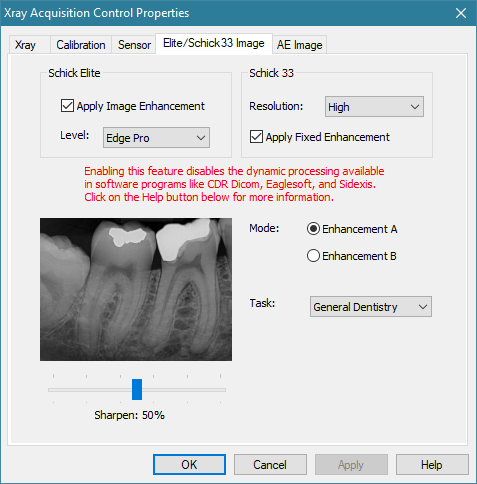

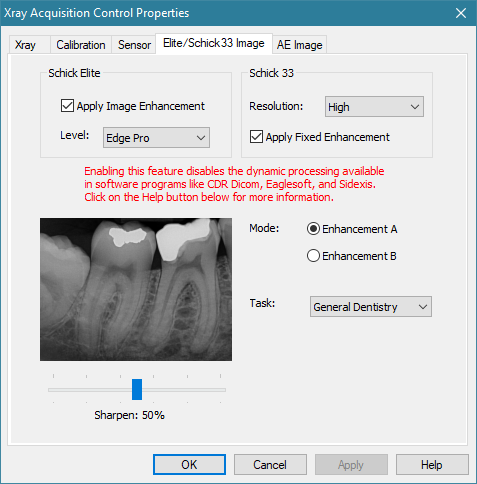

  11. Verify the below settings on the Image tabXVCapture_8zqBql2FZR.png

    Note: If the Image tab does not show up, the drivers on this PC are out of date and need to be updated. The drivers can be retrieved from the manufacturer.

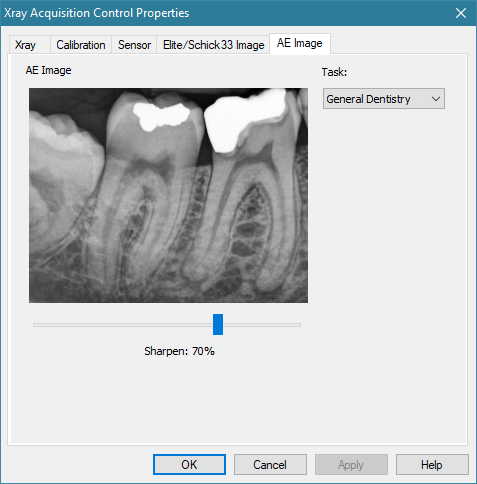

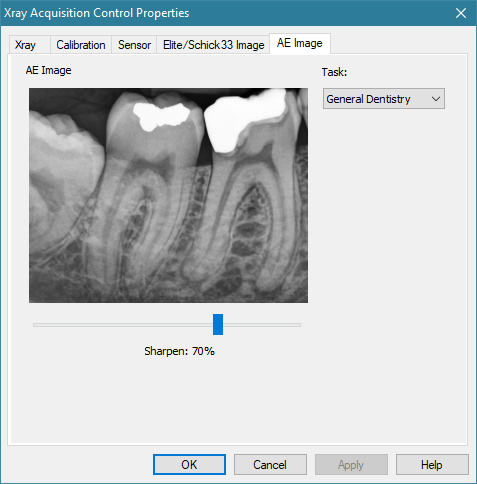

  12. If you are using a Schick AE sensor, verify the below settings on the AE Image tabXVCapture_gL3Y7ho8NM.png

Note: If XVCapture crashes to desktop upon enabling "Apply Image Enhancement" or "Apply Fixed Enhancement," please refer to the following guide: Enabling Schick Enhancement crashes XVCapture

XrayVision:

  1. Launch XrayVision and select Tools > Hardware Options
  2. Double click on Schick
  3. Verify the below settings on the Xray tab

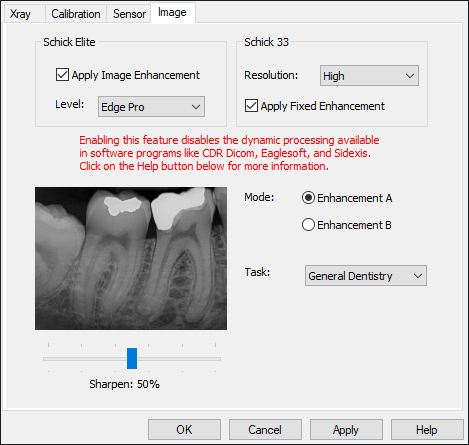

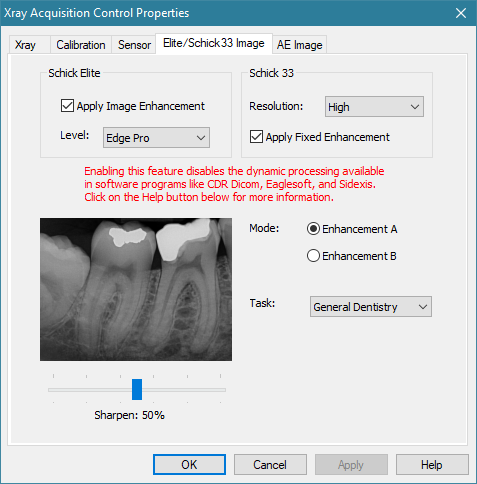

  4. Verify the below settings on the Image tabXVCapture_8zqBql2FZR.png

    Note: If the Image tab does not show up, the drivers on this PC are out of date and need to be updated. The drivers can be retrieved from the manufacturer.

  5. If you are using a Schick AE sensor, verify the below settings on the AE Image tabXVCapture_gL3Y7ho8NM.png

Article Version 1.2 2022.5.24
