ONLY FOR INTERNAL REFERENCE BY CONVERSION TECHNICIANS, DO NOT PROVIDE OUTSIDE THE ORGANIZATION
Install Firebird 32-bit ODBC driver:
https://firebirdsql.org/en/odbc-driver/
Copy this file from OneDrive: GDS32.DLL into their local C:\Windows\SysWOW64\ folder (for 64-bit Windows) or C:\Windows\system32 for 32-bit Windows)

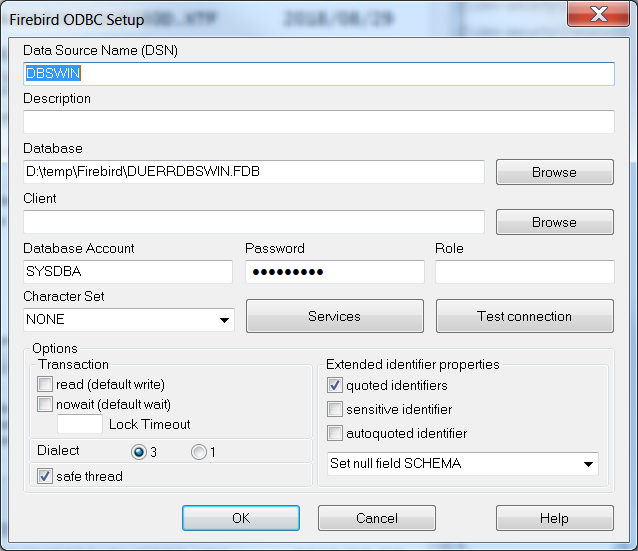

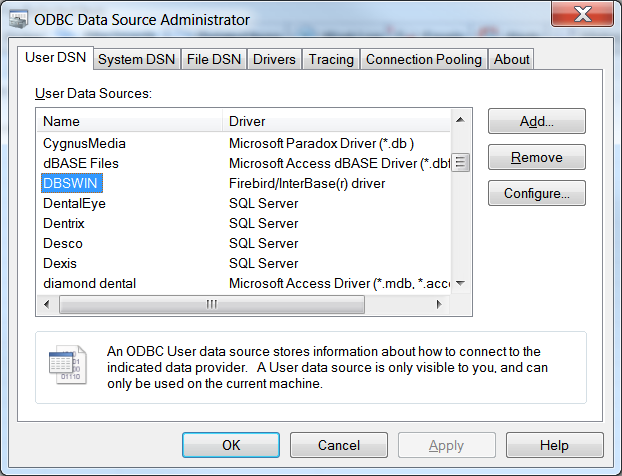

ODBC DSN "DBSWIN" (Firebird ODBC driver) required. Please refer to screenshot to set up the DSN. Browse to the .FDB file for "Database". Default user "SYSDBA", default password "<REMOVED>".
NOTE: if you click Test Connection and it errors about gds32.dll or fbclient.dll failing to load, copy this fbclient.dll into the C:\Windows\SysWOW64 folder: \\dev-security\Databases\DBSWIN\fbclient.dll
NOTE: The link to fbclient.dll above is dead. You may be able to find a copy of the fbclient.dll file int the installation directory for Firebird
NOTE: For the image file path, specify the ..DBSData\pr1 folder.
we can only convert DBSWIN as single images. "According to the developer there was no clear template or tooth information in the DBSWin database to organize the images into templates properly."
DBSWIN Conversions appear to have a history of storing images as inverted and likely need an Apteryx filter set up for the practice.
