The names of our legacy softwares are as follows:
XrayVision 3 (and all OEM versions)
XrayVision 4 (and all OEM versions)
XVLite (and all OEM versions)
NameGrabber
XVSync
All Apteryx Provided 3rd Party TWAINs (see https://planetdds.atlassian.net/wiki/x/O4J2z)
Standalone DataGrabber and all OEM Versions (Without Apteryx/Active Support Contract)
Standalone XrayVision DCV/XVCapture and all OEM Versions (Without Apteryx)
A list of all OEM versions of the above softwares can be found here: OEM Rebrands - PlanetDDS - Internal Knowledge Base - Confluence

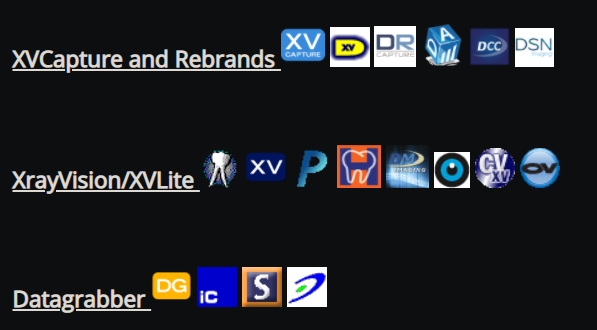

Application/Task Bar Icons:
Registration Numbers:
Obtaining the client’s registration number is the #1 way to identify if a legacy imaging software is in use.
Locating Registration Numbers – Apteryx <- Customer-facing guides that can be sent to a client if needing them to locate their registration code for you in order to confirm the imaging software currently in use.
Apteryx Imaging registration numbers are always in the format XXXX-XXXX-XXXX-XXXX-XXXX-XXXX, with the first 4 characters being the registration prefix. This prefix will always align with the application it was generated for, and is a surefire way to confirm if a user is using a legacy software, regardless of if it may be an OEM version or not. The rest of the code can be ignored.
The first character of the prefix determines the type of registration code as shown below:
First Digit |
Type |
Description |
|---|---|---|
9 |
Legacy |
Original prefix before others. Can be installed as primary or additional |
8 |
Primary |
Primary license (first code to activate with) |
B |
Additional |
Requires Primary to be installed into existing install |
D |
Subscription |
Standalone code that can be expired |
A |
Run time |
Runs as many times as set; typically for conversions only. |
The most common legacy registration prefixes are below:
|
XVCapture 3.4 XrayVision DCV 3.4 |
*C7C *C42 |
XrayVision 4 |
*C75 |
XrayVision 3 |
*C50 |
XVLite |
*C55 |
XVSync |
*C44 |
DataGrabber |
*85A or *C52 |
A full list of registration number prefixes can be located here: Registration Number Quick Reference - PlanetDDS - Internal Knowledge Base - Confluence
Example: 8C75-685A-F222-9CA2-1039-B572
The prefix begins with 8, and the remaining 3 characters are C75. Using the charts above, this indicates this is a Primary XrayVision 4 registration code, and the client is looking for support for XrayVision 4.
Example: DC52-685A-D990-8741-1CDB-FEB6
The prefix begins with D, and the remaining 3 characters are C52. Using the charts above, this indicates this is a Subscription DataGrabber registration code, and the client is looking for support for DataGrabber.
Legacy Software GUIs and Screenshots:
Legacy softwares can also be identified visually. The dropdowns below contain examples of what interfaces may be seen, app icons, and EXE names, specific to each software.
Icon (non-OEM):
Application/EXE Name:

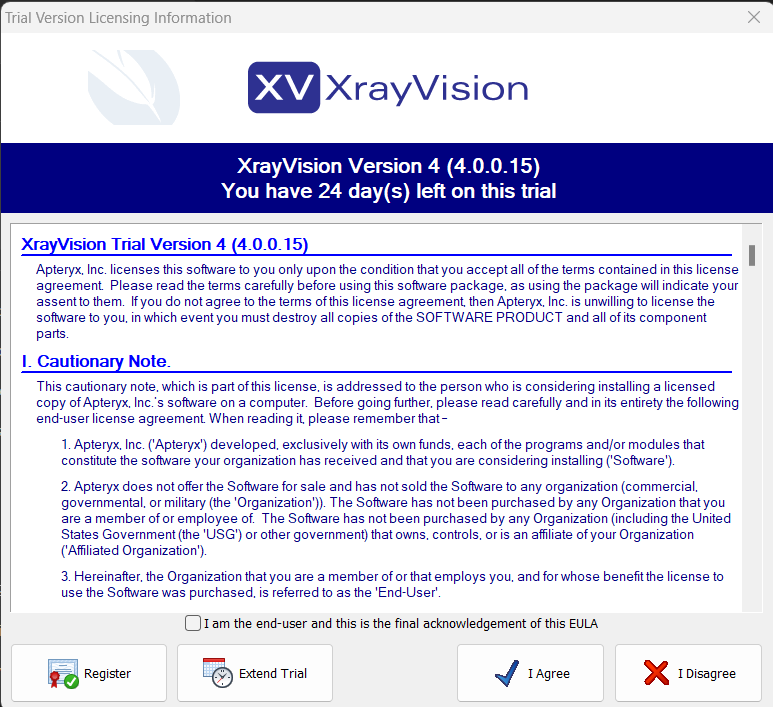

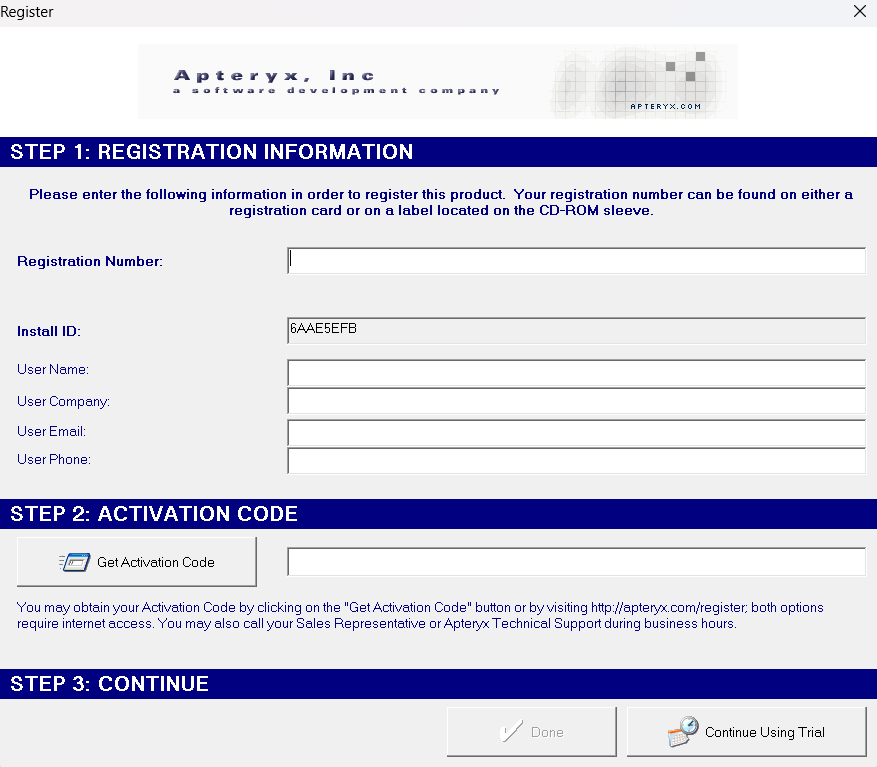

Registration Windows:
Trial Extension Window:

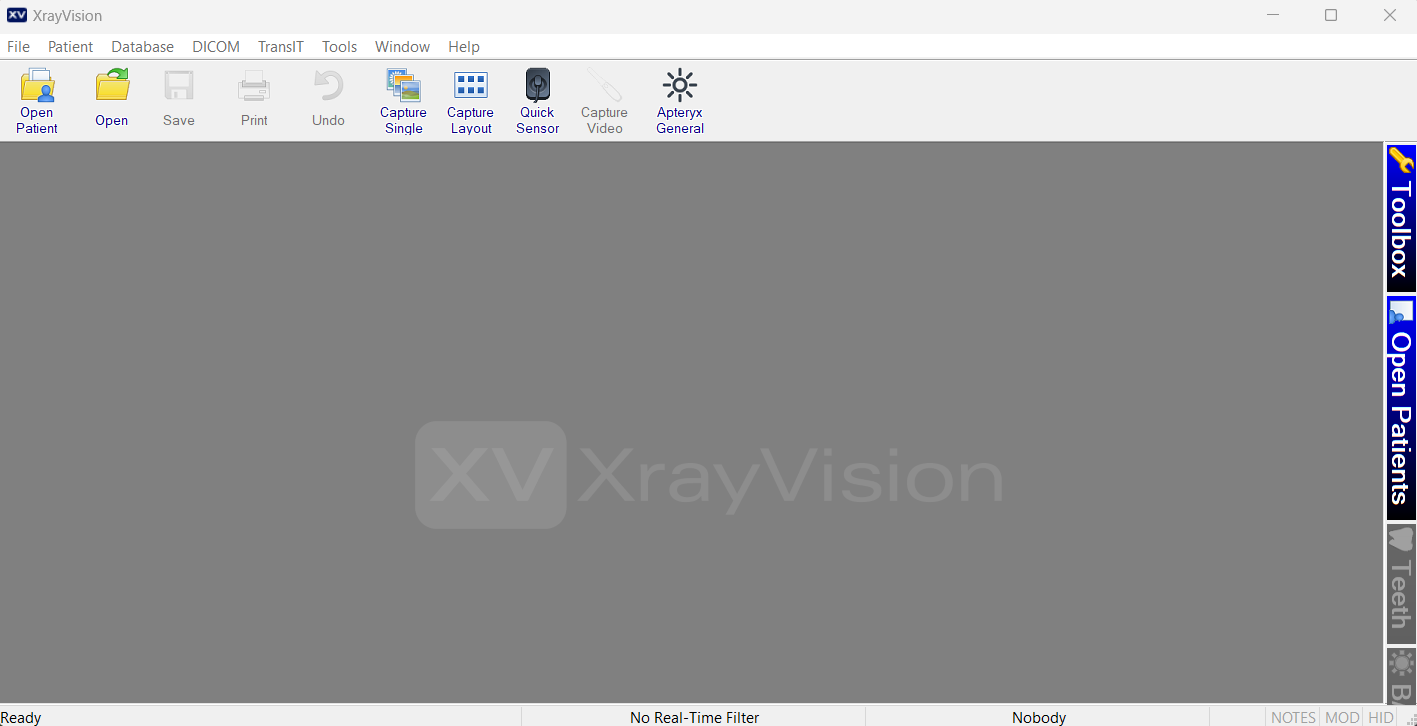

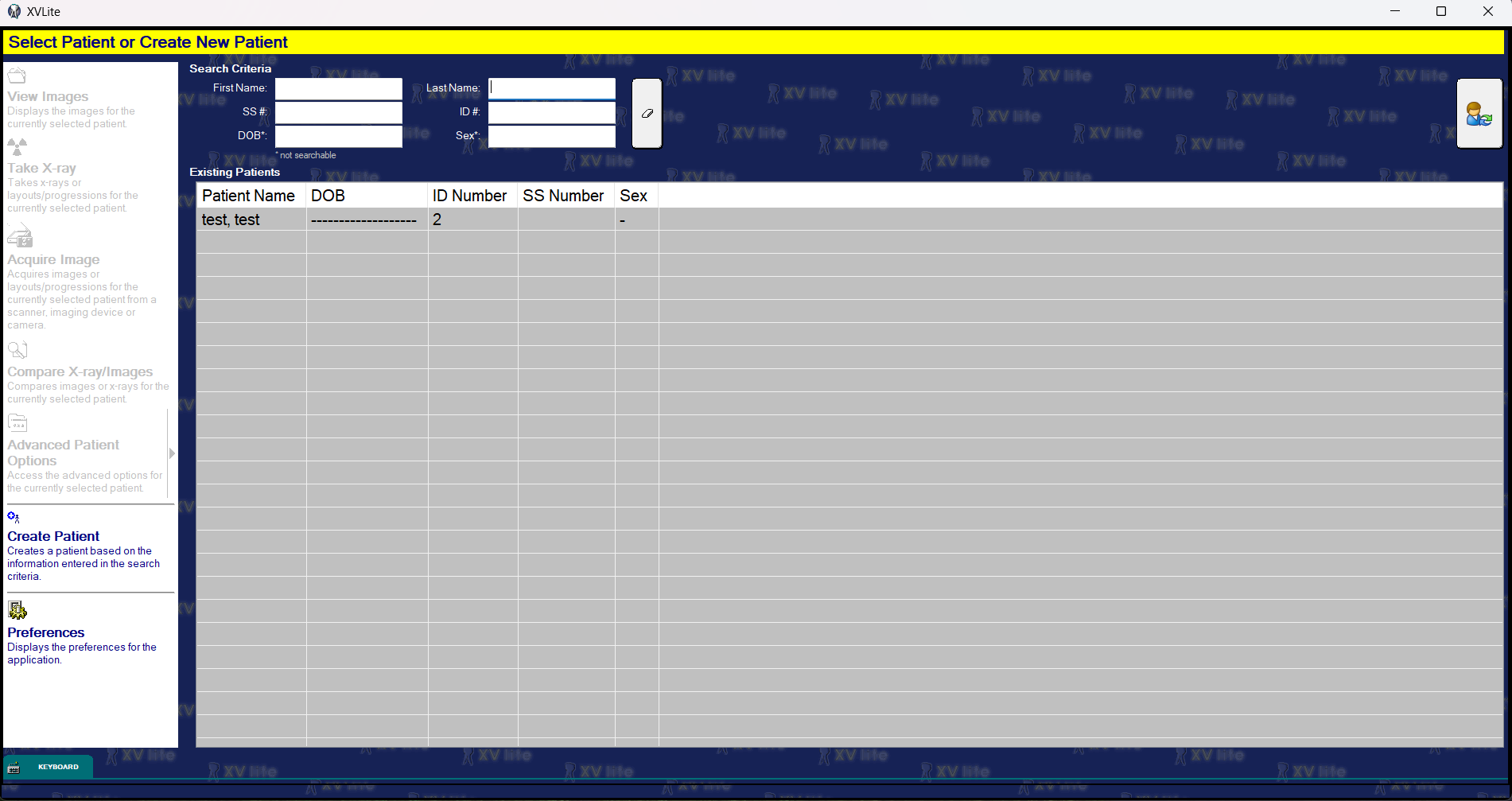

Interface:
Icon (non-OEM):
Application/EXE Name:

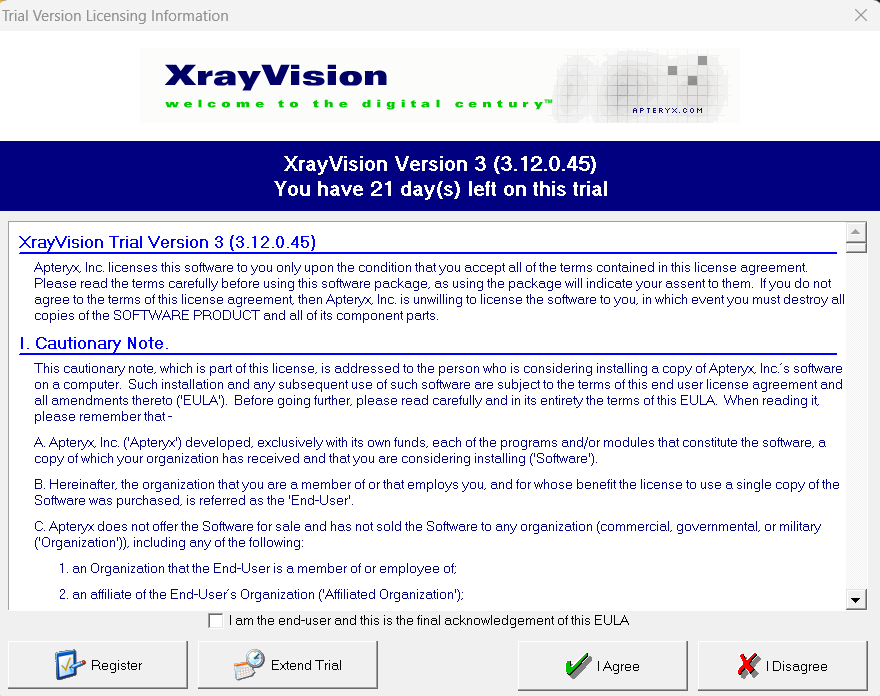

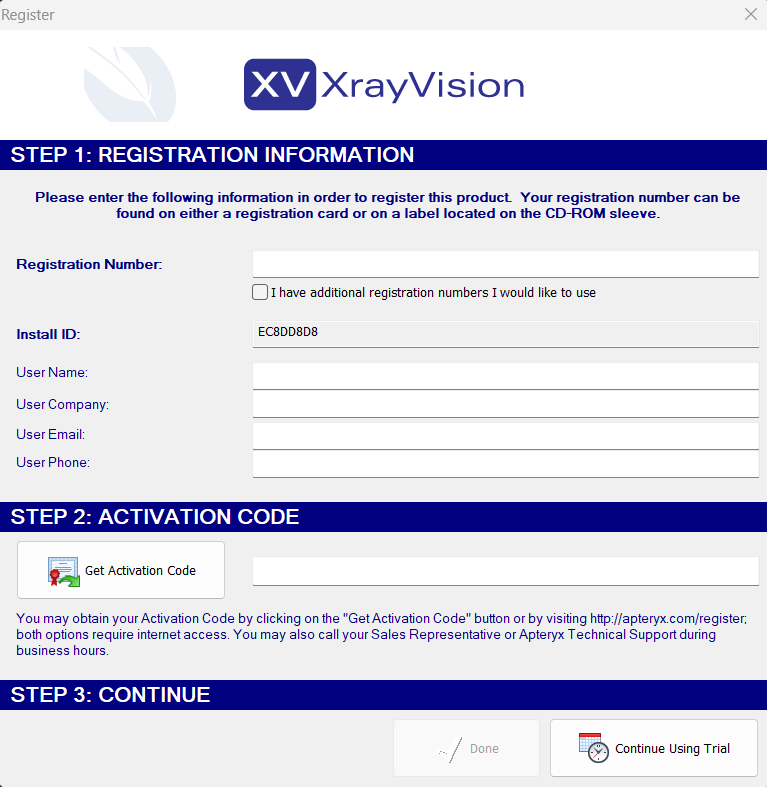

Registration Windows:

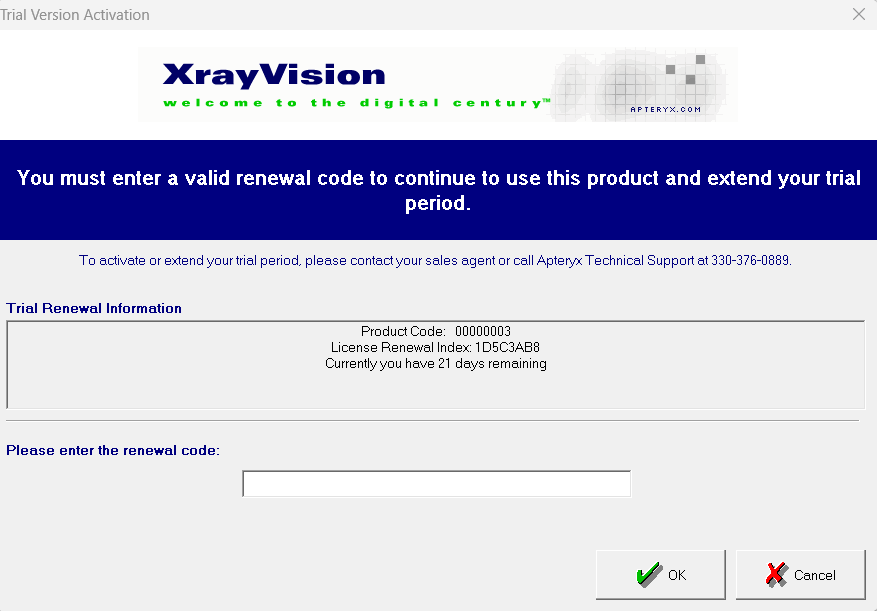

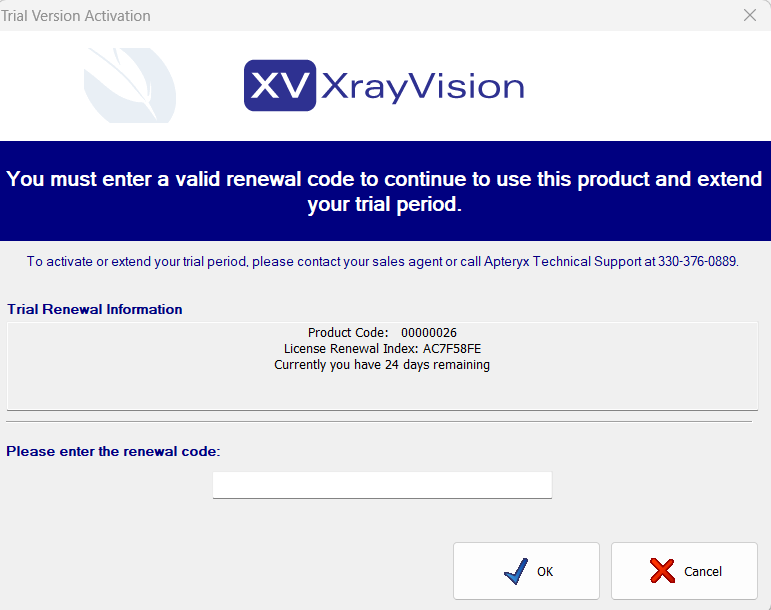

Trial Extension Window:

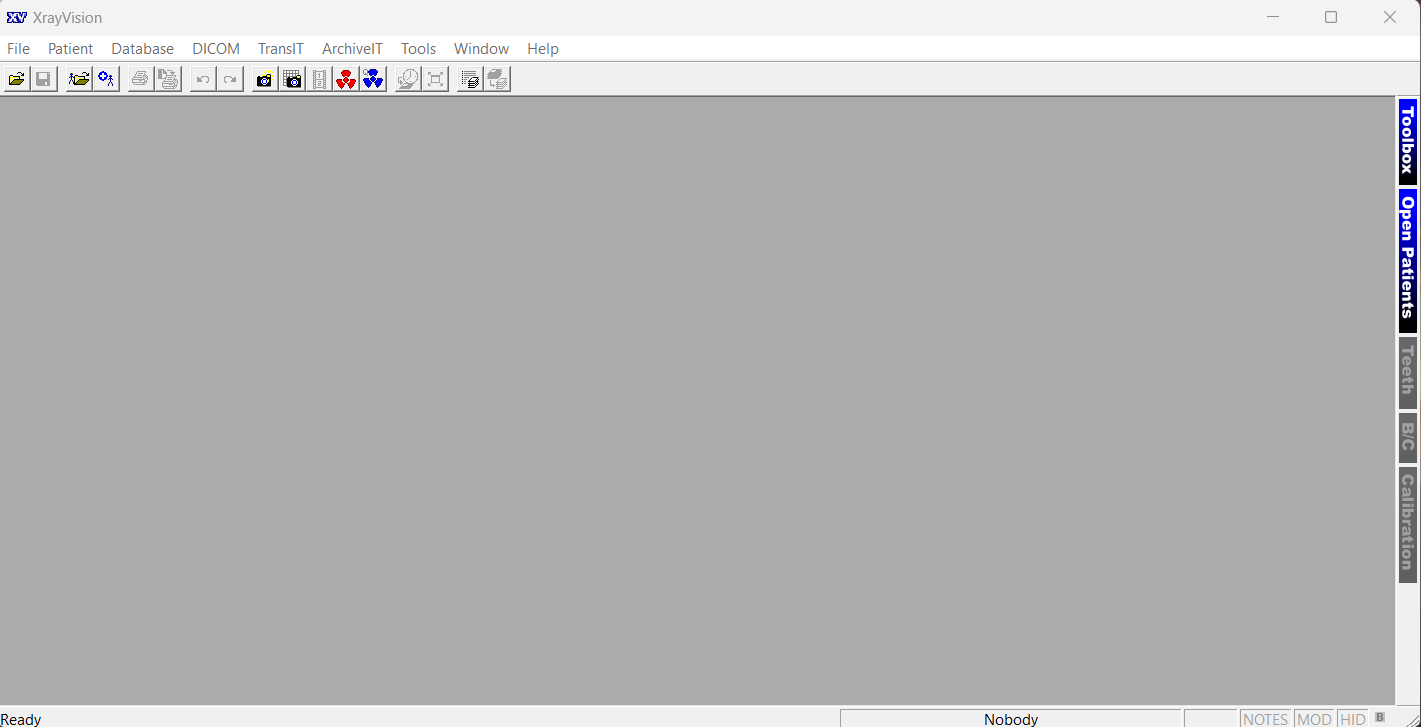

Interface:
Icon (non-OEM):
Application/EXE Name:

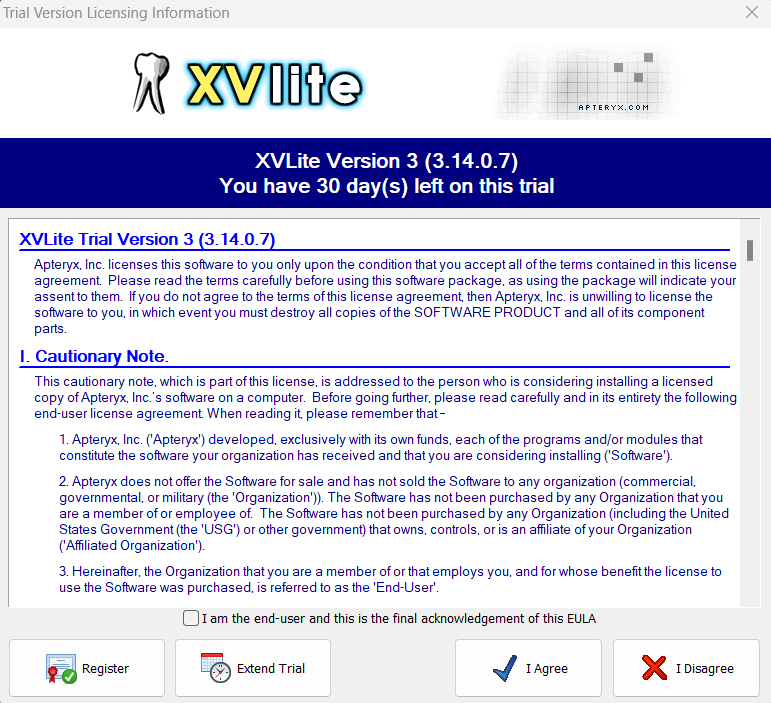

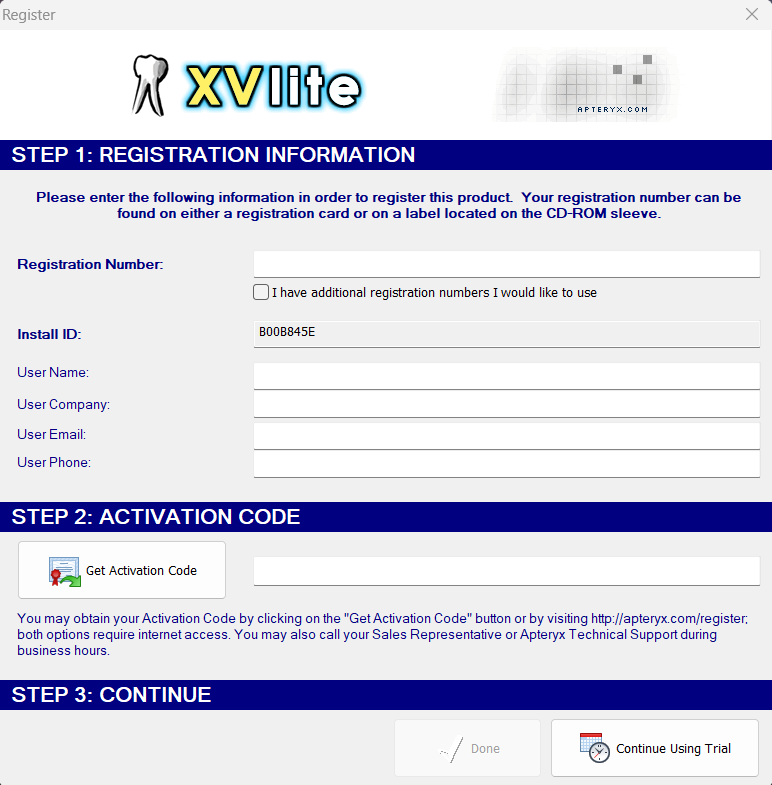

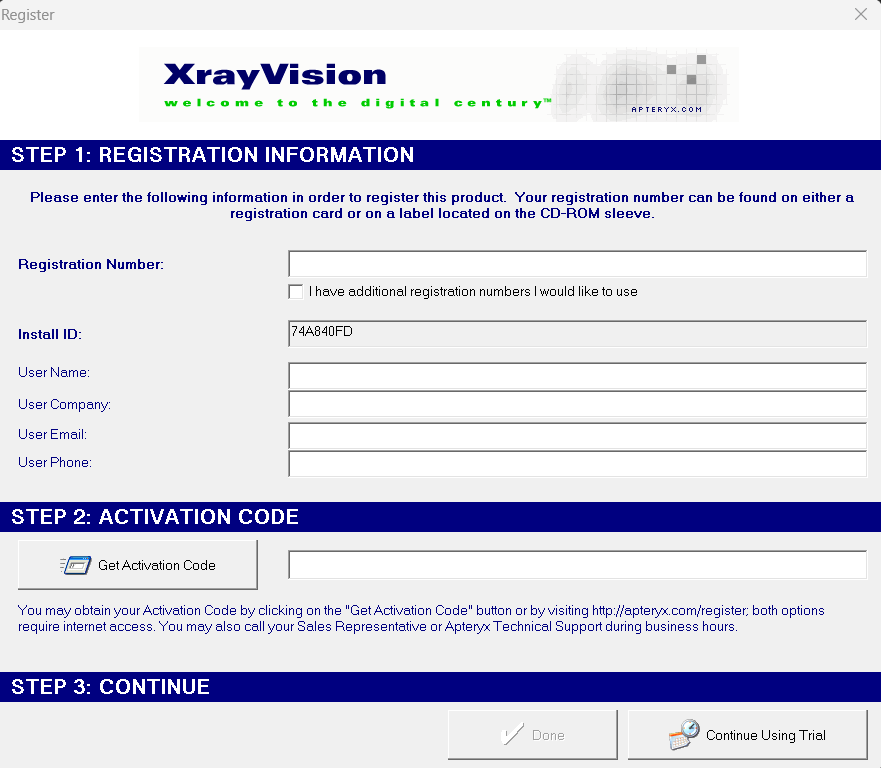

Registration Windows:

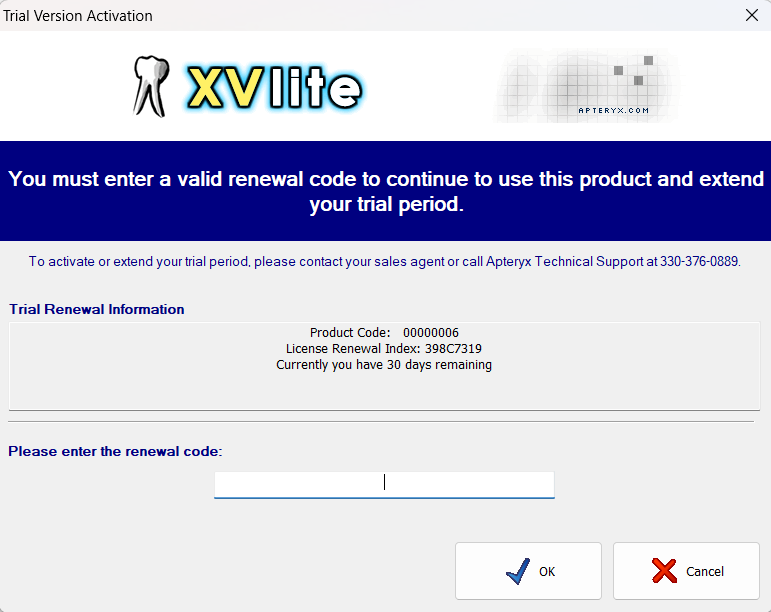

Trial Extension Window:
Interface:
NameGrabber is included with XVLite, XrayVision 3, and XrayVision 4. If a client is using NameGrabber, they are using one of those three applications.
Icon (non-OEM):
Application/EXE Name:
Interface (runs in System Tray):
Icon:
Application/EXE Name:

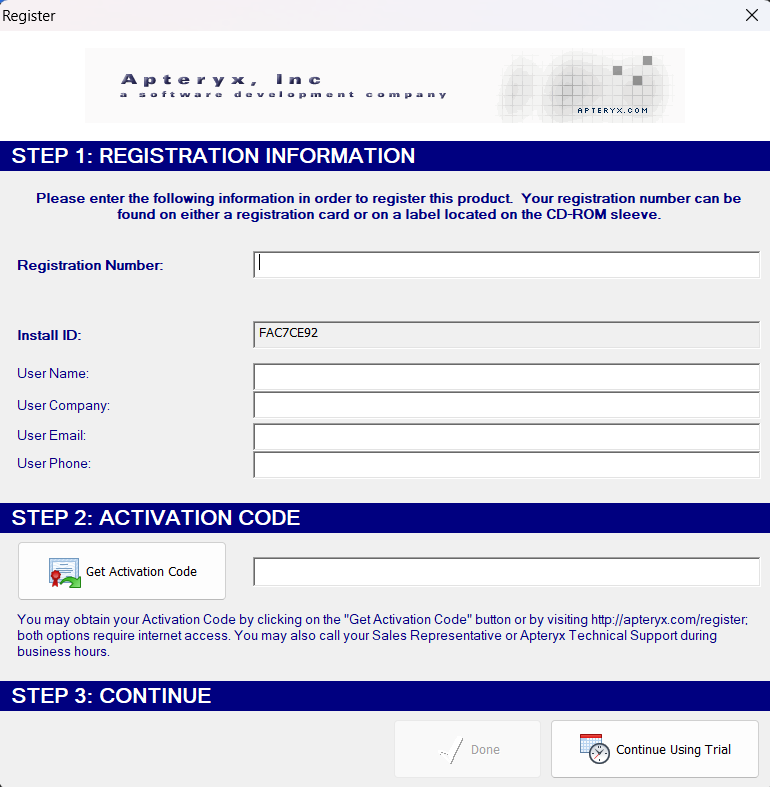

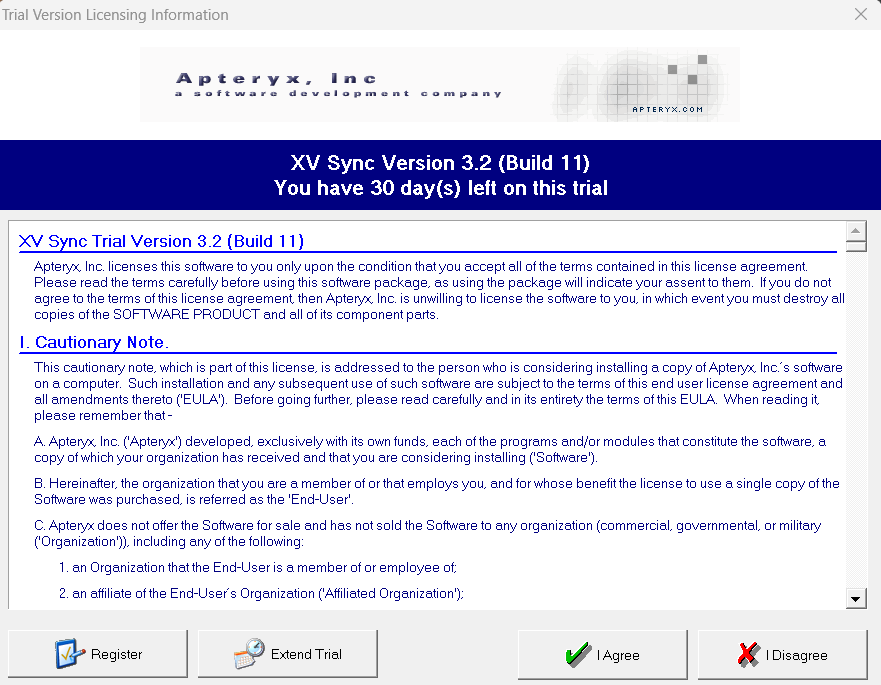

Registration Windows:

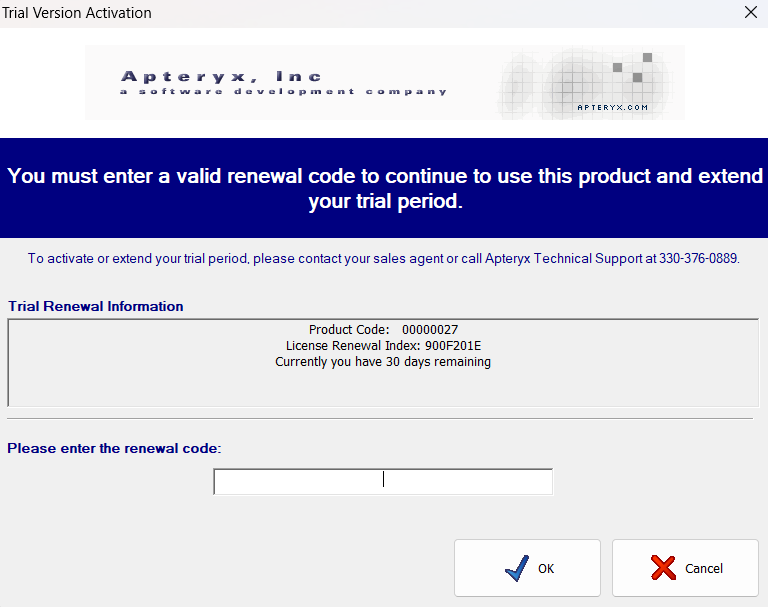

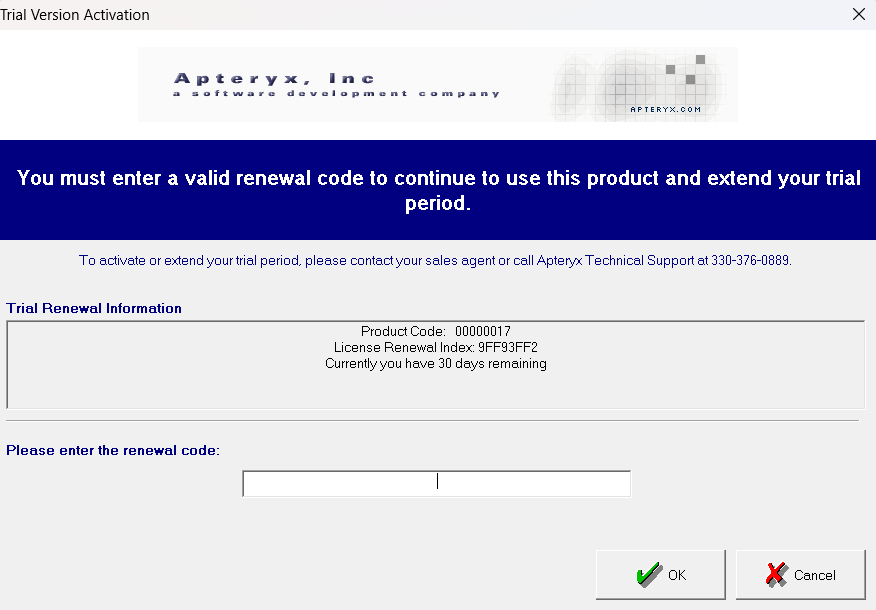

Trial Extension Window:
Interface:

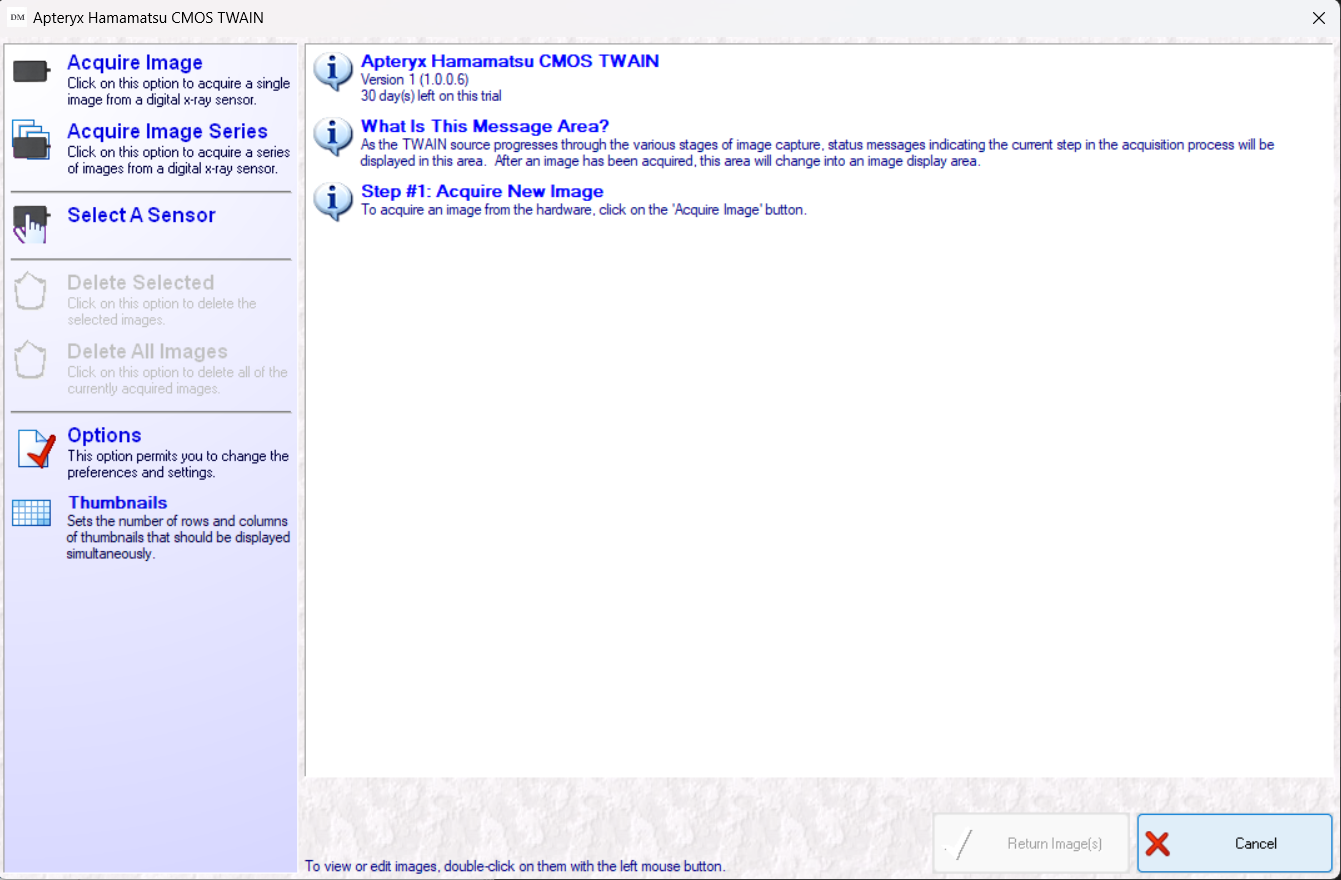

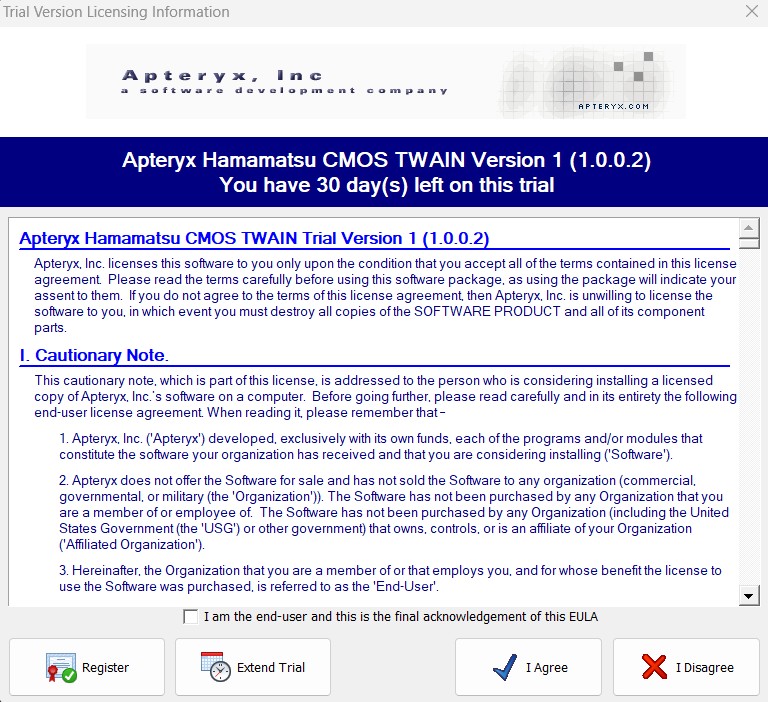

There are many, but they all look similar. See Old Apteryx TWAIN Drivers - PlanetDDS - Internal Knowledge Base - Confluence for full list of our legacy TWAIN Drivers.
Icon:
Application/EXE Name:
Registration Windows:
Trial Extension Window:
Interface:
