These instructions only apply to Apteryx definitions, and only apply to DCV/XVCapture ver. 3.5+
Navigate to Advanced User Tools > Preferences (AKRON) > DICOM Tab > Select Configure DICOM Servers
Select Add

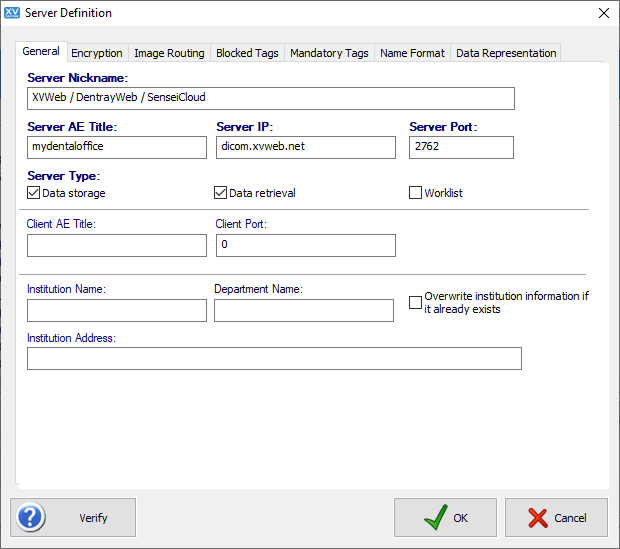

Fill in the top 4 fields in the General Tab
Server Nickname should be Apteryx or rebranded white label name
Server AE Title will be the Apteryx domain name (Domains)
Server IP will always be dicom.Apteryx.net
Server Port will always be 2762

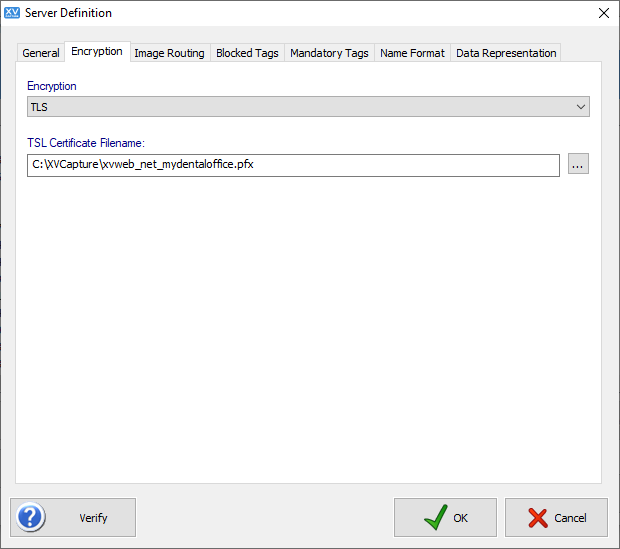

Open the Encryption tab
Adjust Encryption dropdown to TLS
Point the Filename path to the pfx certificate file
Select OK

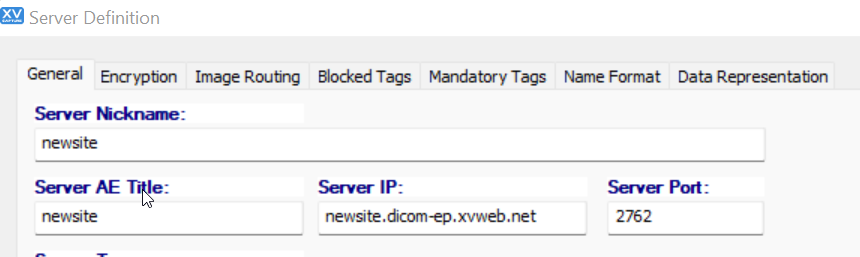

New Tenant DICOM Configuration
The new DICOM tenant requires the DICOM definitions to be added a little differently than the old tenant.
As shown in the example above, the server IP needs to be formatted with the AE Title first followed by dicom-ep. All other portions are the same.
Testing DICOM Connections
Highlight the newly created DICOM server definition and select verify
noteThe verify option may not work the first time, and will require you to attempt to verify again
The verify option may not work the first time, and will require you to attempt to verify again
If successful, the dialogue window will appear with Success at the bottom
