Overview
This article covers the recommended settings for image quality using a DEXIS OP 3D using TWAIN.
DCV/XVCapture:
- Launch DCV/XVCapture and select Advanced User Tools
- Select Preferences
- By default, the User ID is admin and the Password is AKRON
- Select Imaging Extensions from the left side towards the bottom, click the red caret (>) next to Digital X-ray Image Capture and select CloudPluginBridge Digital X-ray
- Click on Modify Post Capture Filters

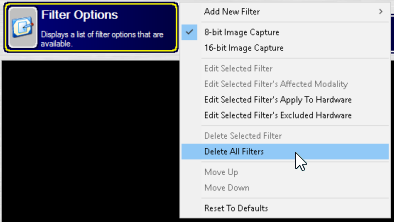

- Select Filter Options > Delete All Filters and hit Yes on the prompt

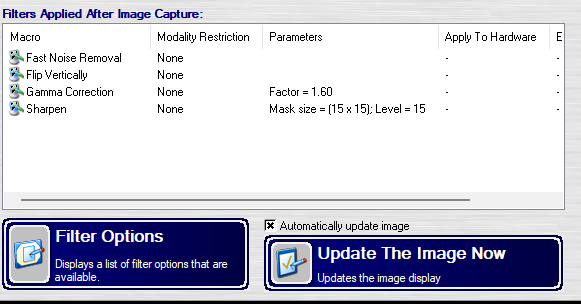

- Select:
Filter Options > Fast Noise Removal Filter
Filter Options > Flip Vertically Filter
Filter Options > Gamma Correction Filter - Set to 160
Filter Options > Sharpen (Spacial) Filter - Set Mask Size to 15x15 and Level to 15 - Click OK to save the Post Capture Filters.
- Click OK.
- Click OK to exit Preferences.
Article Version 1.0 2026-06-05
