I have recently signed up for Denticon Pay and received my Stripe Reader S700. What steps should I take to configure the device and begin processing credit cards using Planet DDS Pay?
Answer:
Your Stripe Reader S700 will need to be fully charged in order to begin setup. Connect the reader to power by plugging the provided USB-C cable into the port on the left side of your reader. Connect the opposite end of the USB-C cable to the provided power adapter and plug it into a power outlet. T Stripe power adapters and cables are recommended for the charging and operation of the S700 and its accessories. Using alternative power adapters or cables might result in failure modes including inadequate S700 charging, and might invalidate your product warranty.
After the device is fully charged:
- Hold down the power button on the right side until the screen turns on
- Access the settings menu by swiping right from the left edge of the reader screen
- Click the Settings button and enter the admin PIN: 07139
- Update your WiFi settings by clicking on the 'Network' option within Settings
- If you are not using WiFi and would like to utilize Ethernet connectivity, this will require the use of an optional dock, which provides wired Ethernet connectivity and keeps your smart reader fully charged using the included charging cable. You can purchase the dock separately through the Stripe Dashboard. The Ethernet Dock features a 10/100 Ethernet port and rubber feet for stable countertop use. To set up the dock:
- Connect the Ethernet cable from your dock to your router.
- Connect the dock to power. It has a minimum power requirement of 5V-2A (10W) and comes with a wall plug to USB-C charging cable.
- When both cables are connected, insert the reader into the dock.

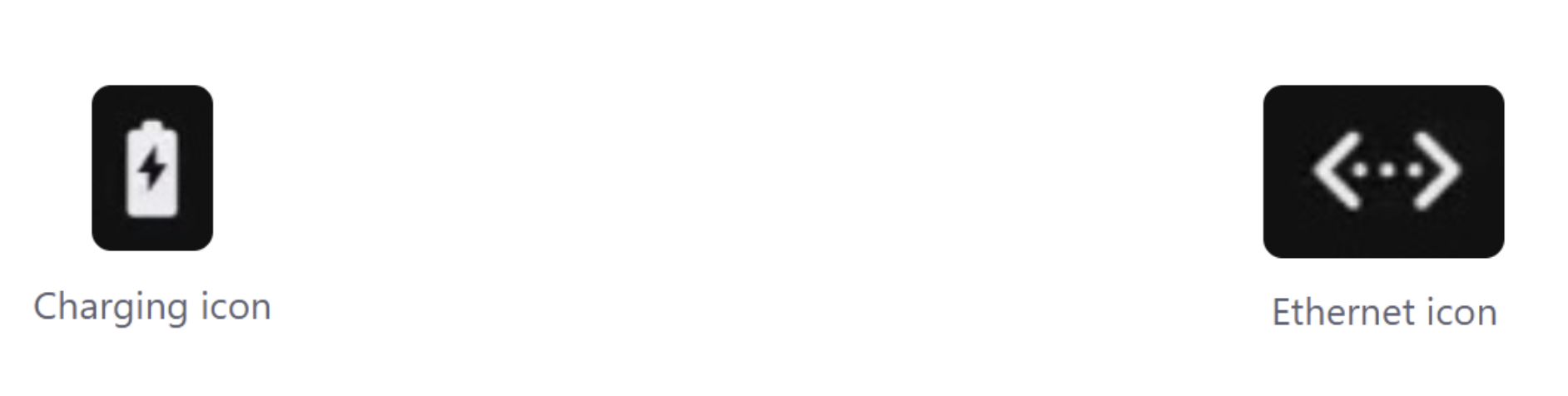

- To confirm that the reader is properly docked, verify the reader is charging and the Ethernet icon is visible in the status bar.
6. Once the device is fully charged and connected to WiFi or an Ethernet you are ready to proceed with the Account Setup within Denticon. The following article will walk you through Account Setup: How do I setup my Account in Denticon so that I can process transactions using Planet DDS Pay?
