The steps listed below will help walk you through the process of importing single images and importing into layouts using the XrayVision software.

Importing Images

Importing Images into a layout

1. Open XrayVision to the intended patient.

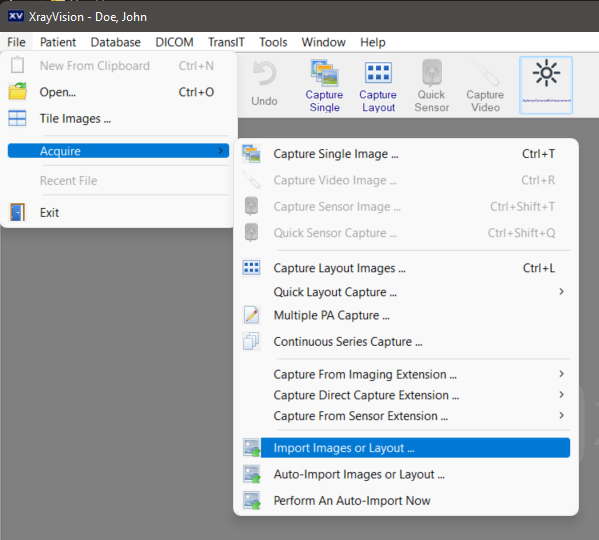

2. In the top menu, select File > Acquire > Import Images or Layout.

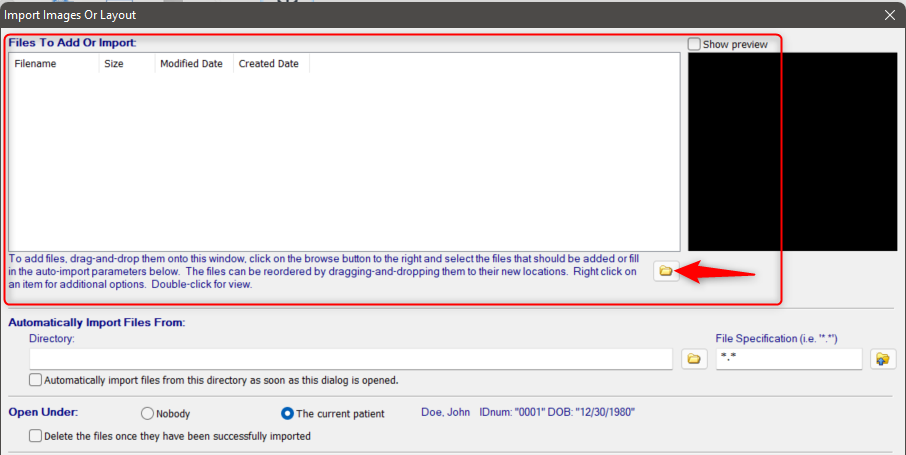

3. Click on the folder icon next to the long explanation under the Files To Add Or Import section.

4. Navigate to, and then select, the desired image(s) to import (holding the CTRL key while clicking will allow multiple selections), then click Open.

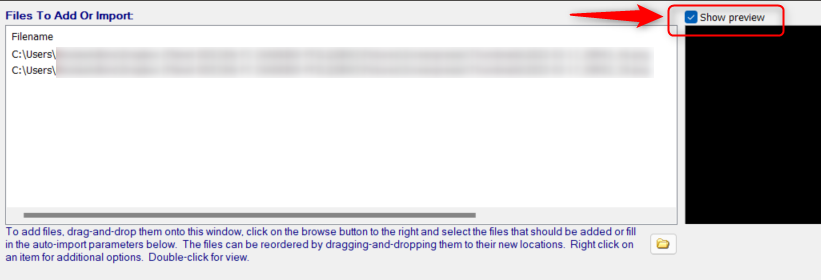

   • Previews of the selected images can be seen by checking Show preview and then clicking within the list to highlight an image.

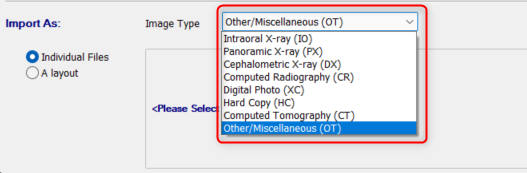

5. Under the section Import As, select the desired modality,

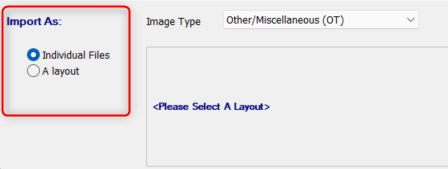

   choose either to import image(s) as Individual Files or as A layout,

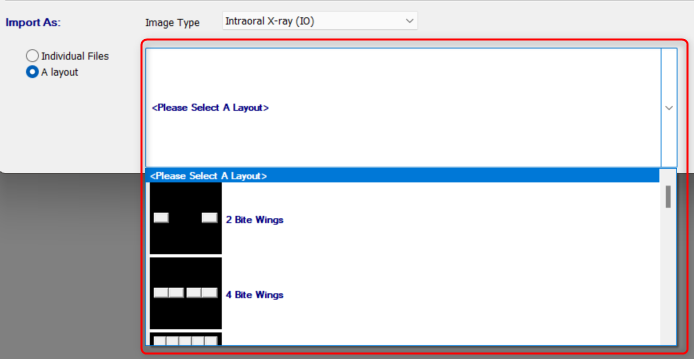

   if importing as a layout, select the layout template to import into.

6. If satisfied with the Import Images Or Layout window, select OK to import into XrayVision.

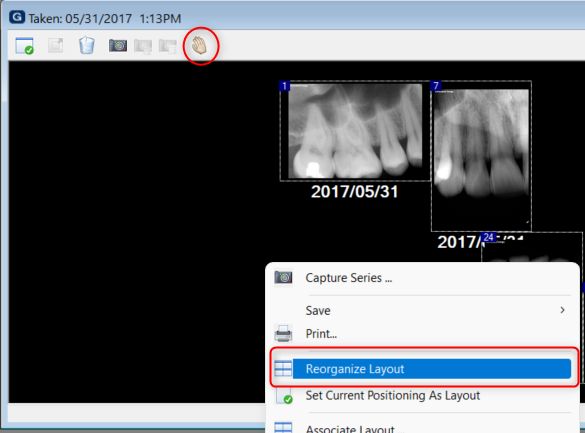

7. The layout may need to be reorganized if the images do not populate into the intended tiles. This can be done by clicking on the hand icon above the layout (or by right-clicking between images in the layout and selecting Reorganize Layout)
