Carestream/Kodak Universal Extension Configuration - XrayVision

Josh Grabia

In order for XrayVision to know where the Carestream/Kodak drivers are installed, it needs to be pointed to the proper directory.

If you have seen the following error during capture, XrayVision cannot find the Kodak drivers on your computer.

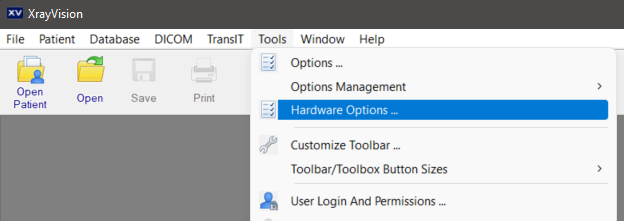

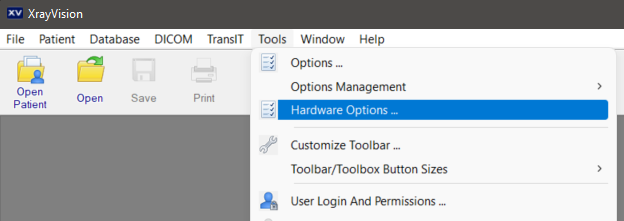

  1. To access the SED options in XrayVision 4, click the Tools menu at the top, selecting Hardware Options

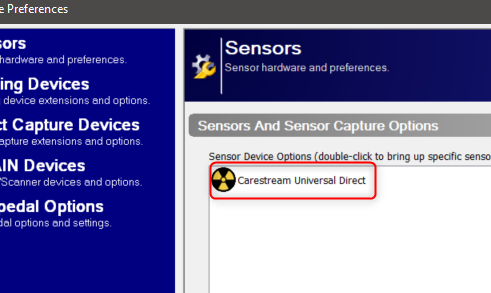

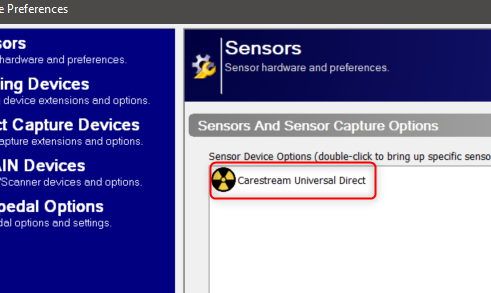

  2. Double click Carestream Universal Direct
  3. Enter the driver path in the 'Kodak Acquisition SDK Location"
  4. The path entered here depends on your computer's OS type

64 bit computers (most common) use the following path

C:\Program Files(x86)\Common Files\Trophy\Acquisition

32 bit computers use the following path

C:\Program Files\Common Files\Trophy\Acquisition

If  issues persist, verify the drivers are in fact installed on the computer. If they are not, your IT or Carestream will need to assist you in downloading and installing the drivers for your computer.



Article Version 1.1 2022.04.15
